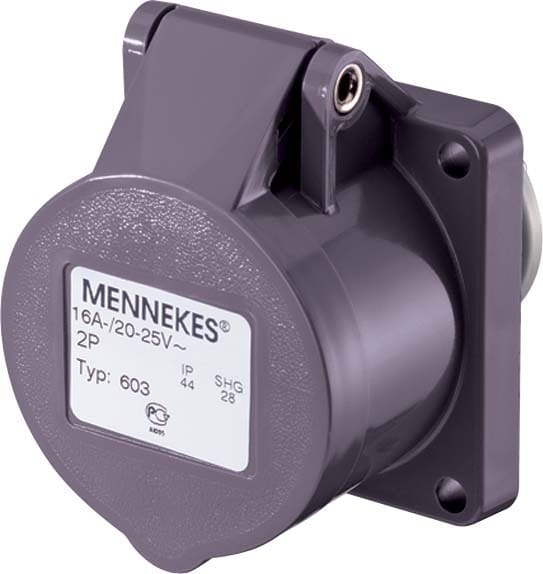

Mennekes - Mennk 603 16A 2P 25V Purple - 603

IEC-amperage:

16 A

Amperage acc. UL/CSA (for UL-version):

20 A

Voltage acc. EN 60309-2:

20-25 V (50+60 Hz) violet

Rated frequency:

50...60 Hz

Number of poles:

2

Clock hour position:

0 h

Identification colour:

Violet

IP-rating:

IP44

Connection system:

Screwed terminal

Plug-in direction:

Straight

Material:

Plastic

Military model:

no

Flange size vertical:

55 mm

Drill hole distance vertical:

45 mm

Flange size horizontal:

55 mm

Drill hole distance horizontal:

45 mm
