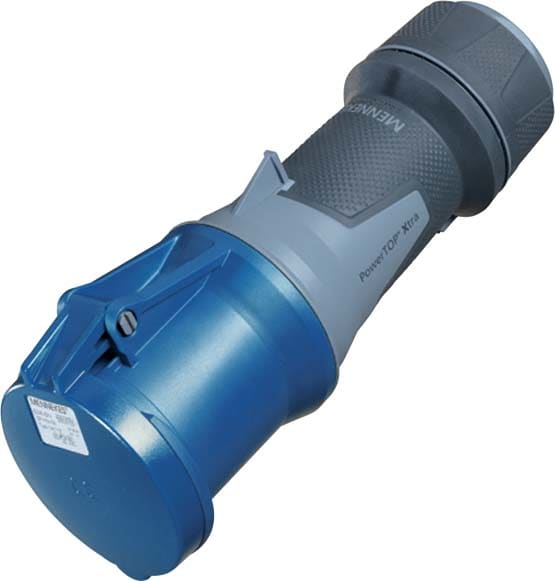

Mennekes - PowerTOPxtra Conn IP44 63A 3p 230V 6h pi - 14102P
£90.73
/ each
£90.73
1
Delivery
Number of available items for delivery:0
Essential specifications
IEC-amperage - 63 A
Amperage acc. UL/CSA (for UL-version) - 60 A
Number of poles - 3
Voltage acc. EN 60309-2 - 230 V (50+60 Hz) blue
Clock hour position - 6 h
Packaging
1 each
GTIN
Supplier Ref
14102P
Manufacturer Ref
14102P
Commercial Reference
14102P
IEC-amperage:
63 A
Amperage acc. UL/CSA (for UL-version):
60 A
Number of poles:
3
Voltage acc. EN 60309-2:
230 V (50+60 Hz) blue
Clock hour position:
6 h
Identification colour:
Blue
IP-rating:
IP44
Connection system:
Screwed terminal
Plug-in direction:
Straight
Cable entry:
Gland nut
Material:
Plastic
Military model:
no
PowerTOPxtra Conn IP44 63A 3p 230V 6h pilot contact
- Screw terminals
- With rubberised grip area
- Frame terminals
- With SoftCONTACT
- With highly heat resistant contact carrier
- Cable gland and sealing
- Strain relief and protection against kinking
- Enclosure with thread lock
- Two safety slides
- Products with pilot contact: part no. + index P
Mennekes
