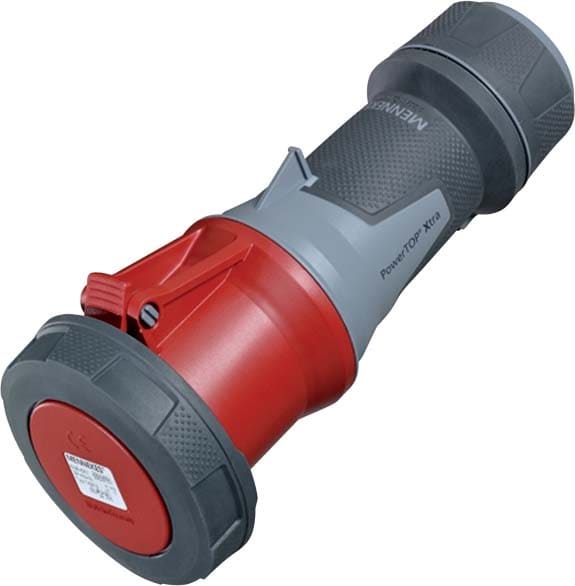

Mennekes - PowerTOPxtra Conn IP67 63A 4p 400V 6h - 14206P
£120.16
/ each
£120.16
1
Delivery
Number of available items for delivery:0
Essential specifications
IEC-amperage - 63 A
Amperage acc. UL/CSA (for UL-version) - 60 A
Number of poles - 4
Voltage acc. EN 60309-2 - 400 V (50+60 Hz) red
Clock hour position - 6 h
Packaging
1 each
GTIN
4015394237921
Supplier Ref
14206P
Manufacturer Ref
14206P
Commercial Reference
14206P
IEC-amperage:
63 A
Amperage acc. UL/CSA (for UL-version):
60 A
Number of poles:
4
Voltage acc. EN 60309-2:
400 V (50+60 Hz) red
Clock hour position:
6 h
Identification colour:
Red
IP-rating:
IP67
Connection system:
Screwed terminal
Plug-in direction:
Straight
Cable entry:
Gland nut
Material:
Plastic
Military model:
no
PowerTOPxtra Conn IP67 63A 4p 400V 6h pilot contact
- Slip-proof, shock-resistant and protected.
- Best grip, even under humid conditions, snow or dirt through unique rubber coating of the cantact surfaces and the ergonomic design.
- Easier opening and closing of the hinged lid through ingtegrated opening aid on the connector lid.
- Clean.
- Closed, easy to clean surface: cable gland is always located directly on the plug and connector body.
- Safe and tasted.
- The plugs provide better corrosion protection in aggressive environments and at high degrees of air humidity thanks to nickelplated contacts. More safety through highly heatresistant contact carrier. Molded seals in the connector lid and the front part of the plug. Especially smooth-running cable gland with integrated strain relief, seal and protection against kinking.
- Fast.
- Stable and fast locking without screws. Unlocking only with just a tool according to the regulations.
- Approved.
- Secure contact as well as convenient inserting and withdrawing through SoftCONTACT at 63A and TorsionSpringCONTACT at 125A.
