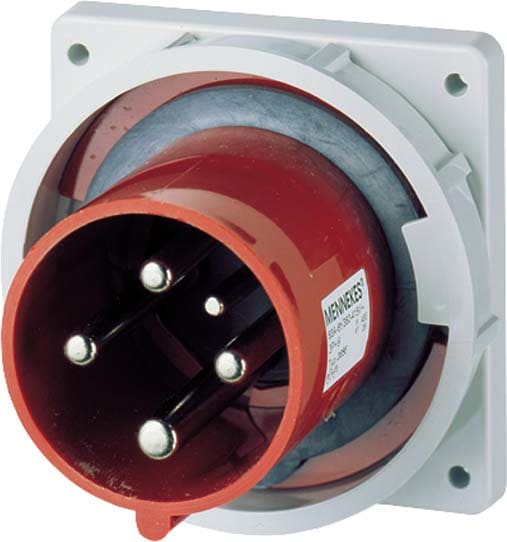

Mennekes - str.Panel Inlet IP67 63A 4p 400V 6h - 3656
£160.85
/ each
£160.85
1
Delivery
Number of available items for delivery:0
Essential specifications
IEC-amperage - 63 A
Amperage acc. UL/CSA (for UL-version) - 60 A
Voltage acc. EN 60309-2 - 400 V (50+60 Hz) red
Number of poles - 4
Clock hour position - 6 h
Packaging
1 each
GTIN
4015394020448
Supplier Ref
3656
Manufacturer Ref
3656
Commercial Reference
3656
IEC-amperage:
63 A
Amperage acc. UL/CSA (for UL-version):
60 A
Voltage acc. EN 60309-2:
400 V (50+60 Hz) red
Number of poles:
4
Clock hour position:
6 h
Identification colour:
Red
IP-rating:
IP67
Connection system:
Screwed terminal
Construction type:
Built-up device plug
Phase inverter:
no
Plug-in direction:
Straight
Material:
Plastic
Military model:
no
str.Panel Inlet IP67 63A 4p 400V 6h
- Screw terminals
- With highly heat resistant contact carrier
- Nickel plated contacts
- 63A: a retaining nose to hold the hinged lid of the connector must be provided by the customer in order to ensure satisfactory locking
Mennekes
Explore more products in this series
