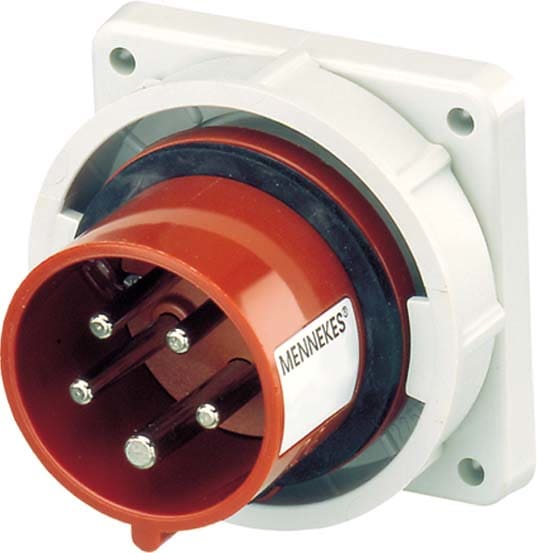

Mennekes - Straight Panel Inlet IP67 32A 5p 400V 6h - 834
£49.35
/ each
£49.35
1
Delivery
Number of available items for delivery:0
Essential specifications
IEC-amperage - 32 A
Amperage acc. UL/CSA (for UL-version) - 30 A
Voltage acc. EN 60309-2 - 400 V (50+60 Hz) red
Number of poles - 5
Clock hour position - 6 h
Packaging
1 each
GTIN
4015394116912
Supplier Ref
834
Manufacturer Ref
834
Commercial Reference
834
IEC-amperage:
32 A
Amperage acc. UL/CSA (for UL-version):
30 A
Voltage acc. EN 60309-2:
400 V (50+60 Hz) red
Number of poles:
5
Clock hour position:
6 h
Identification colour:
Red
IP-rating:
IP67
Connection system:
Screwed terminal
Construction type:
Built-up device plug
Phase inverter:
no
Plug-in direction:
Straight
Material:
Plastic
Military model:
no
str.Panel Inlet IP67 32A 5p 400V 6h
- Screw terminals
- Nickel-plated contacts
- A retaining nose to hold the hinged lid of the connector must be provided by the customer in order to ensure satisfactory locking
Mennekes
