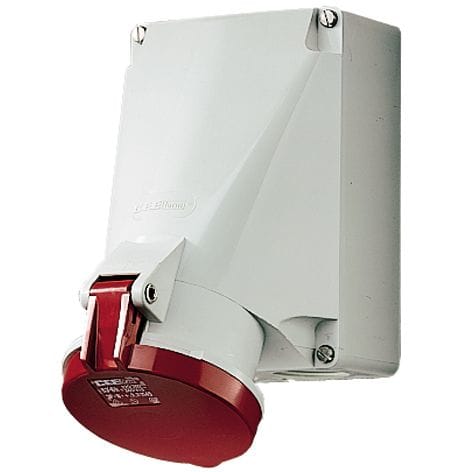

Mennekes - Wall Socket IP44 63A 4p 400V 6h - 1141PA

IEC-amperage:

63 A

Amperage acc. UL/CSA (for UL-version):

60 A

Voltage acc. EN 60309-2:

400 V (50+60 Hz) red

Rated frequency:

50...60 Hz

Number of poles:

4

Clock hour position:

6 h

Identification colour:

Red

IP-rating:

IP44

Connection system:

Screwed terminal

Plug-in direction:

Angled

Material:

Plastic

Military model:

no

Flange size vertical:

170 mm

Drill hole distance vertical:

134.5 mm

Flange size horizontal:

118 mm

Drill hole distance horizontal:

103 mm
