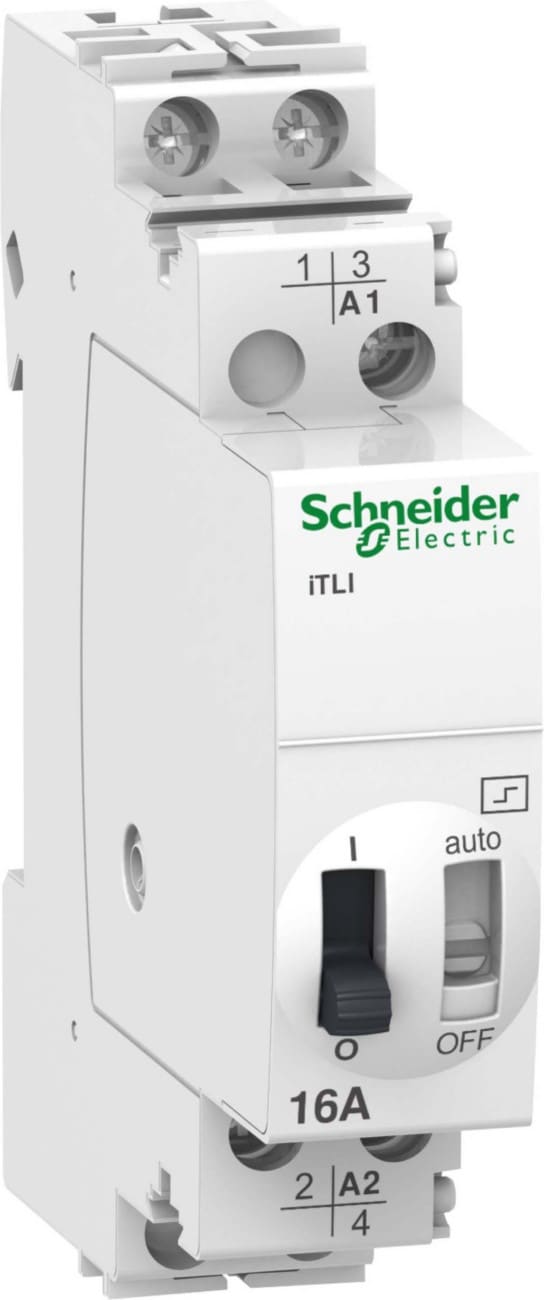

Merlin Gerin - ACTI9 ITLI 16A 1NO 1NF 230...240VAC 50-6 - A9C30815
/ each
£59.74
Delivery
Essential specifications
Mounting method - DIN rail
Number of contacts as normally open contact - 0
Number of contacts as normally closed contact - 0
Rated switch current - 16 A
Width in number of modular spacings - 1
Packaging
1 each
GTIN
3606480091971
Supplier Ref
A9C30815
Manufacturer Ref
A9C30815
Commercial Reference
A9C30815
Mounting method:
DIN rail
Number of contacts as normally open contact:
0
Number of contacts as normally closed contact:
0
Rated switch current:
16 A
Width in number of modular spacings:
1
Number of contacts as change-over contact:
1
Control voltage 1:
230...240 V
Type of control voltage 1:
AC
Control voltage 2:
110...110 V
Type of control voltage 2:
DC
Supply voltage:
110...240 V
Voltage type of supply voltage:
AC/DC
Manual operation:
yes
Impulse relay iTLI, 2p, 1NO+1NC, 16A, coil 110 VDC, 230.240 VAC 50/60Hz. relay application: changeover relay - range of product: iTL - device short name: iTLi - poles description: 2P - pole contact composition: 1 NO + 1 NC - network type: AC - control circuit voltage: 110 V DC, 230.240 V AC 50/60 Hz. Benefits: - Easy to select, with a wide range compliant with DIN rail standard, Peace of mind with a complete modular system, A simple clip-on system for flexible product and auxiliary combinations, Consistent with the entire Acti 9 offer, Compatible with all types of lighting. Applications: - Control and monitoring of electrical circuits in all industrial, commercial and residential buildings., Lighting management via several push buttons.
- With exclusive features, Acti 9 iTL DIN rail impulse relay is definitely geared to absolute safety.
- Class-2 insulation : continuous safety for operators and unqualified personnel.
- Rating: 16, 32 A N
- Number of poles: 1P, 2P, 3P or 4P
- Multiple control by push buttons
- Control voltage: 230, 130, 48, 24 V AC; 110, 24, 12 V DC
- Lifetime - total number of switching operations (AC21): 200,000 for iTL 16 A,
- 50,000 for iTL 32 A
- Compliance with standards EN 669-1, EN 669-2-2,
- Built-in or optional auxiliary function: state indication, centralised control, latched control, control for illuminated PB, step-by-step control, time delay
- Easy to select, with a wide range compliant with DIN rail standard
- Peace of mind with a complete modular system
- A simple clip-on system for flexible product and auxiliary combinations
- Consistent with the entire Acti 9 offer
- Compatible with all types of lighting
