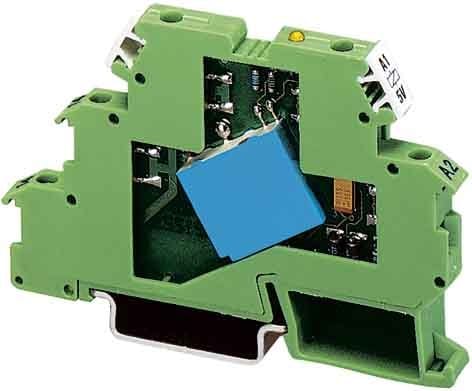

Phoenix Contact - DEK-REL- 24/O/1 - 2941154

Type of electric plug connection:

Screw connection

Complete with socket:

yes

Rated control supply voltage Us at AC 50HZ:

24...24 V

Rated control supply voltage Us at DC:

24...24 V

Voltage type for actuating:

AC/DC

With detachable clamps:

no

Drive, polarization:

Polarized

Drive, switching attitude:

Mono stable

Number of contacts as normally closed contact:

0

Number of contacts as normally open contact:

1

Number of contacts as change-over contact:

0

Type of switch contact:

Double contact

With interlocked opposing contacts:

no

Nominal current:

3 A

IP-rating:

IP20

Width:

80 mm

Height:

56 mm

Depth:

80 mm
