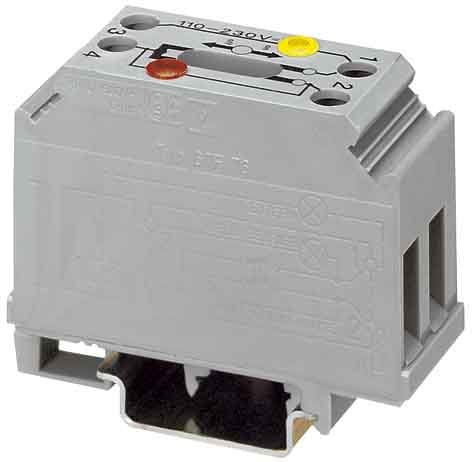

Phoenix Contact - GTF 76/230 - 3121012
/ each
£34.17
Delivery
Essential specifications
Connectable conductor cross section fine-strand without cable end sleeve - 0.5...6 mm²
Rated current In - 41 A
Type of electrical connection 1 - Screw connection
Number of clamp positions per level - 2
Type of slitting - Sliding
Packaging
1 each
GTIN
4017918092917
Supplier Ref
3121012
Manufacturer Ref
3121012
Commercial Reference
3121012
Connectable conductor cross section fine-strand without cable end sleeve:
0.5...6 mm²
Rated current In:
41 A
Type of electrical connection 1:
Screw connection
Number of clamp positions per level:
2
Type of slitting:
Sliding
Connectable conductor cross section fine-strand with cable end sleeve:
0.5...10 mm²
Connectable conductor cross section solid-core:
0.5...10 mm²
Connectable conductor cross section multi-wired:
0.5...6 mm²
Rated voltage:
110 V
Type of electrical connection 2:
Screw connection
Number of levels:
1
Internally connected levels:
no
Mounting method:
DIN rail (top hat rail) 35 mm
Material insulation body:
Thermoplastic
Width:
22.5 mm
Depth:
64.5 mm
End plate required:
no
Colour:
Grey
Type of cross disconnection:
None
With integrated test socket:
no
Ground disconnect terminal block with screw connection, voltage 110 - 250 V AC/DC, current: 0.5 - 1 mA, cross section: 0.5 - 6 mm², width: 22.5 mm, color: gray
