Phoenix Contact - HC-EVO-B16PT-BWSC-HH-M25-PLRBK - 1408793
£77.20
/ each
£77.20
1
Delivery
Number of available items for delivery:0
Essential specifications
Rated current In - 16 A
Rated voltage - 500 V
Rated surge voltage - 6 kV
Type of electric plug connection - Flat plug-in connection
Inflammability class of insulation material acc. with UL94 - V0
Packaging
1 each
GTIN
4046356834100
Supplier Ref
1408793
Manufacturer Ref
1408793
Commercial Reference
1408793
Rated current In:
16 A
Rated voltage:
500 V
Rated surge voltage:
6 kV
Type of electric plug connection:
Flat plug-in connection
Inflammability class of insulation material acc. with UL94:
V0
Degree of protection (IP), mounted:
IP66

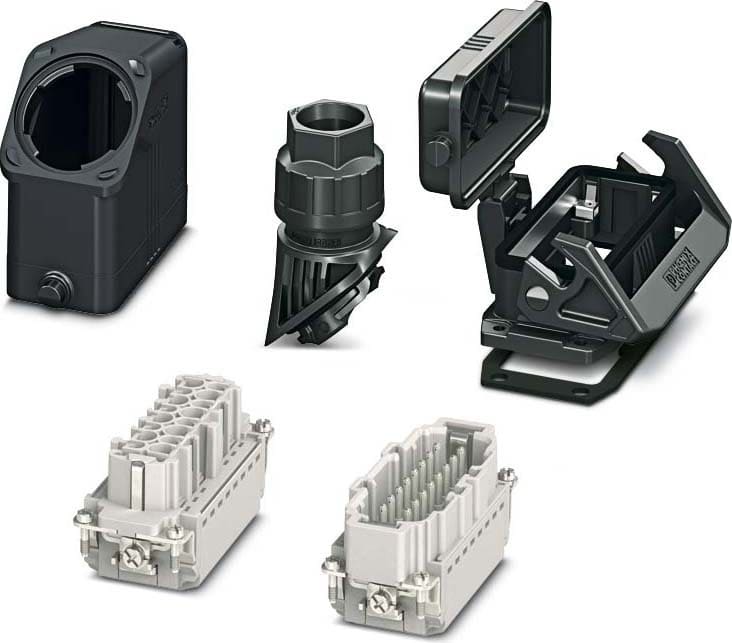

EVO connector set, B16 series, plastic housing, consisting of sleeve housing, panel mounting base, push-in contact inserts: 1407731, 1407732, 1407647, 1407642, 1407670
- Lower costs than metal version
- Labeling option using 9 x 20 mm marking label
- Low weight
- Lower risk of condensation
- Both contact insert PE sheets are connected by means of a metal frame integrated in the sleeve housing
- Metal inlays ensure leading PE contact with angled plugs
- Completely corrosion-resistant
- Halogen-free plastic
- Marking label can be attached
