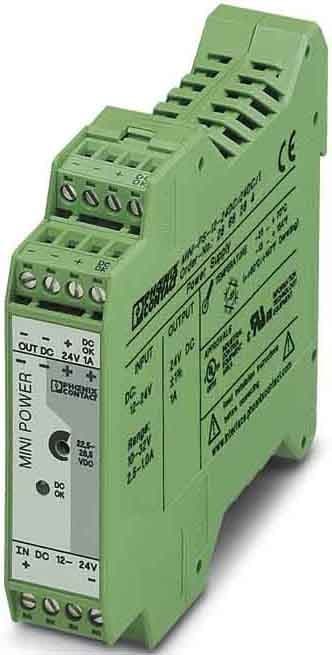

Phoenix Contact - MINI-PS-12-24DC/24DC/1 - 2866284
/ each
£126.12
Delivery
Essential specifications
Voltage type of supply voltage - DC
1st secondary output voltage - 24...24 V
Max. output current 1 - 1 A
Secondary voltage adjustable - yes
Short-circuit-proof - yes
Packaging
1 each
GTIN
4017918960902
Supplier Ref
2866284
Manufacturer Ref
2866284
Commercial Reference
2866284
Voltage type of supply voltage:
DC
1st secondary output voltage:
24...24 V
Max. output current 1:
1 A
Secondary voltage adjustable:
yes
Short-circuit-proof:
yes
Rated supply voltage at DC:
12...24 V
Output voltage stabilized:
yes
Power output:
24 W
Stabilized:
yes
Type of electric plug connection:
Screw connection
Rail mounting possible:
yes
Width:
22.5 mm
Height:
99 mm
Depth:
107 mm
Suitable for safety functions:
no
IP-rating:
IP20
Primary-switched MINI DC/DC converter for DIN rail mounting, input: 1-phase, output: 24 V DC/1 A
- MINI POWER power supplies for MCR technology
- In measurement and control technology (MCR), modular electronics housing has become the industry standard. MINI POWER is the power supply unit to go with it. The devices are flexible, thanks to special voltages and special versions.
- Your advantages
- Easy-maintenance connection technology thanks to keyed COMBICON connectors
- Remote monitoring of output voltage via switching output
