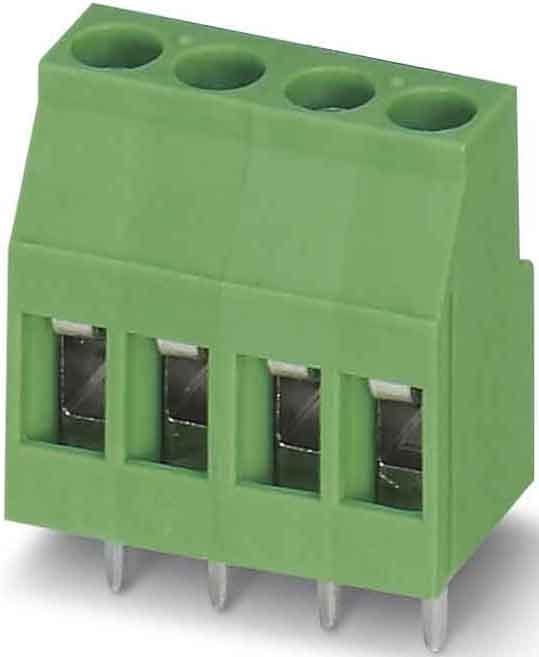

Phoenix Contact - MKDS 3/ 4 - 1711042

Number of electrical connections:

4

Modular spacing connections:

5 mm

Rated current In:

24 A

Connection type conductor:

Screw connection

Housing colour:

Green

Height:

23 mm

Number of levels:

1

Angle PCB/conductor connection:

0°/180° (horizontal)

Rated voltage:

400 V

Rated surge voltage:

4 kV

Over voltage category:

III

Pollution degree:

2

Connectable conductor cross section solid-core:

0.2...4 mm²

Connectable conductor cross section fine-strand with cable end sleeve:

0.25...2.5 mm²

Connectable conductor cross section fine-strand without cable end sleeve:

0.2...2.5 mm²

Connectable conductor cross section multi-wired:

0.2...2.5 mm²

Connection type PCB:

Soldering connection

Material connection surface:

Tin

Diameter connection pin:

0.9 mm

Length pin:

5 mm

Material insulation body:

Thermoplastic

Type of PCB fastening:

Connecting contact

Type of fastening:

Solder
