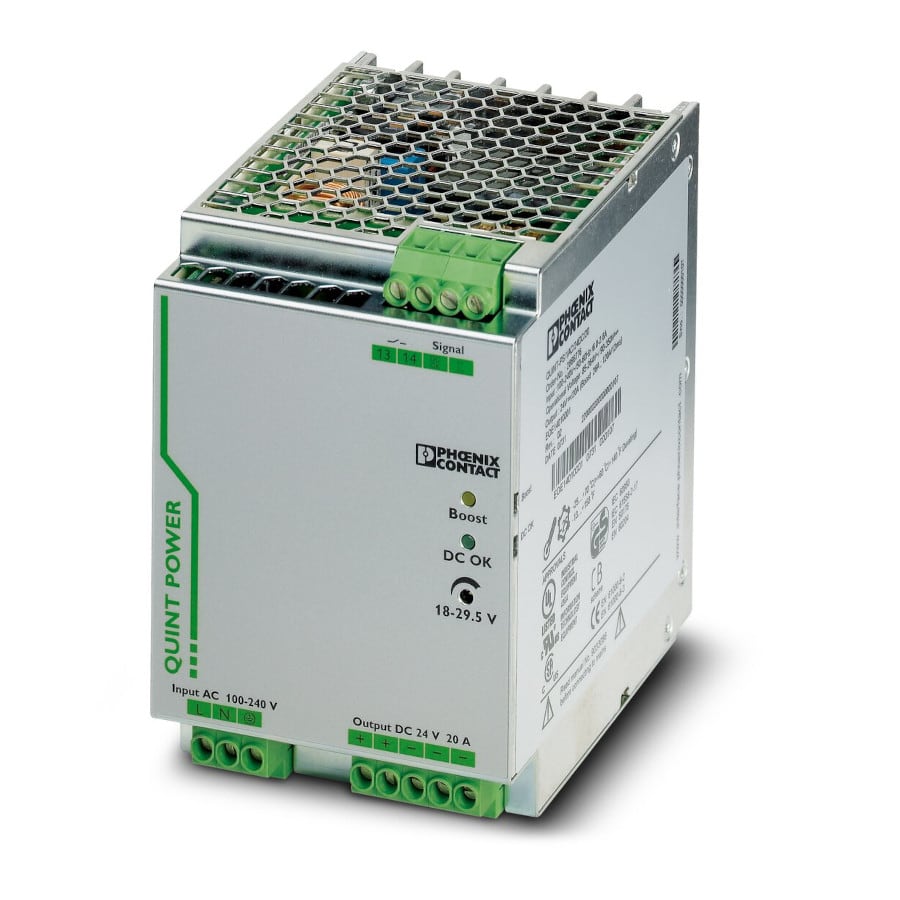

Phoenix Contact - Phoenix Contact Quint Power Primary-switched Power Supply 24V DC 20A - 2866776
/ each
£399.41
Delivery
Essential specifications
Voltage type of supply voltage - AC/DC
1st secondary output voltage - 18...29.5 V
Max. output current 1 - 20 A
Secondary voltage adjustable - yes
Nominal value output voltage 1 - 24 V
Packaging
1 each
GTIN
4046356113557
Supplier Ref
2866776
Manufacturer Ref
2866776
Commercial Reference
2866776
Voltage type of supply voltage:
AC/DC
1st secondary output voltage:
18...29.5 V
Max. output current 1:
20 A
Secondary voltage adjustable:
yes
Nominal value output voltage 1:
24 V
Nominal value output current 1:
20 A
Short-circuit-proof:
yes
Rated supply voltage at AC 50 Hz:
85...264 V
Rated supply voltage at AC 60 Hz:
85...264 V
Rated supply voltage at DC:
90...350 V
Output voltage stabilized:
yes
Power consumption:
2.3 VA
Power output:
480 W
Stabilized:
yes
Type of electric plug connection:
Screw connection
Rail mounting possible:
yes
Suitable for wall mounting:
no
Suitable for DIN installation panels:
no
Width in number of modular spacings:
5
Aperture height:
130 mm
Direct mounting possible:
yes
Width:
90 mm
Height:
130 mm
Depth:
125 mm
Suitable for safety functions:
yes
Performance level acc. to EN ISO 13849-1:
None
IP-rating:
IP20
Phoenix Contact Quint Power Primary-switched Power Supply 24V DC 100-240V AC Input 20A DIN rail mounted with SFB. Compact power supply units of the new QUINT POWER generation maximize the availability of your system. With the SFB technology (Selective Fuse Breaking Technology), six times the nominal current for 12 ms, even the standard power circuit-breakers can now also be triggered reliably and quickly.
- QUINT POWER power supplies with maximum functionality
- QUINT POWER circuit breakers magnetically and therefore quickly trip at six times the nominal current, for selective and therefore cost-effective system protection. In addition, the high system availability is ensured by preventive function monitoring which reports critical operating states before errors can occur.
- Reliable starting of heavy loads takes place via the static power reserve POWER BOOST. Thanks to the adjustable voltage, all ranges between 18 V DC ... 29.5 V DC are covered.
