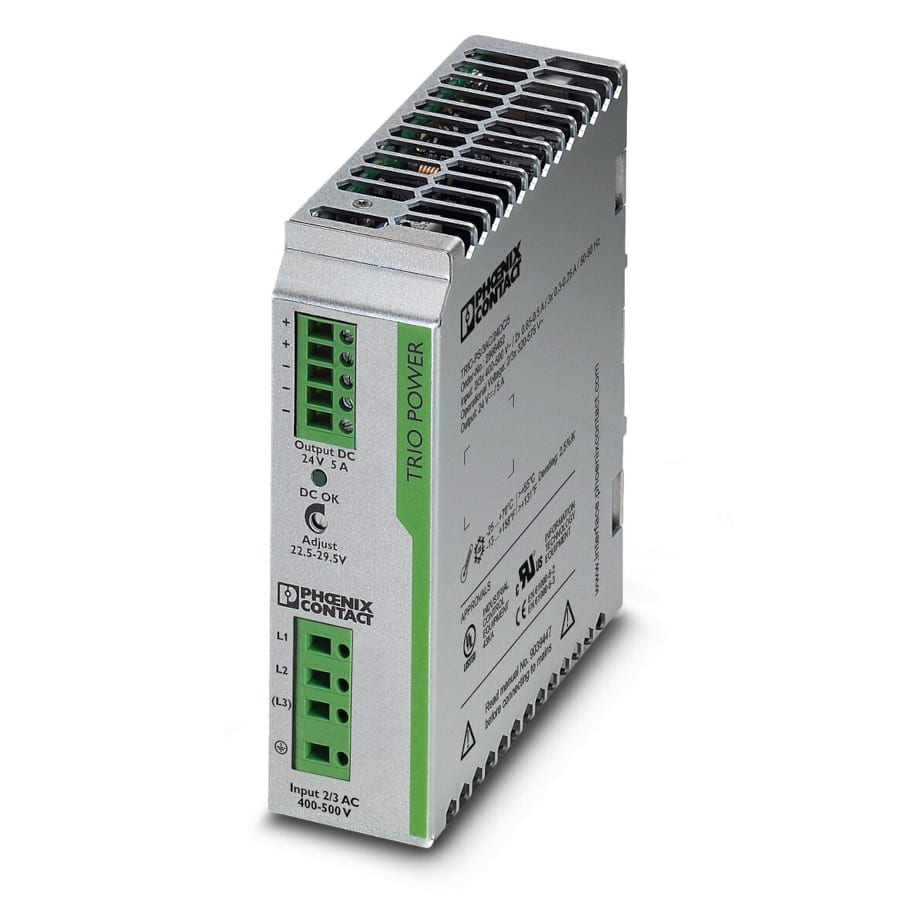

Phoenix Contact - Phoenix Contact Trio Power Primary-switched Power Supply 24V DC 5A - 2866462
/ each
£167.11
Delivery
Essential specifications
Voltage type of supply voltage - AC
1st secondary output voltage - 22.5...29.5 V
Max. output current 1 - 5 A
Secondary voltage adjustable - yes
Nominal value output voltage 1 - 24 V
Packaging
1 each
GTIN
4046356128544
Supplier Ref
2866462
Manufacturer Ref
2866462
Commercial Reference
2866462
Voltage type of supply voltage:
AC
1st secondary output voltage:
22.5...29.5 V
Max. output current 1:
5 A
Secondary voltage adjustable:
yes
Nominal value output voltage 1:
24 V
Nominal value output current 1:
5 A
Short-circuit-proof:
yes
Rated supply voltage at AC 50 Hz:
320...575 V
Rated supply voltage at AC 60 Hz:
320...575 V
Output voltage stabilized:
yes
Power consumption:
0.25 VA
Power output:
120 W
Stabilized:
yes
Type of electric plug connection:
Screw connection
Rail mounting possible:
yes
Suitable for wall mounting:
no
Suitable for DIN installation panels:
no
Width in number of modular spacings:
2.2
Aperture height:
130 mm
Direct mounting possible:
no
Width:
40 mm
Height:
130 mm
Depth:
115 mm
Suitable for safety functions:
yes
Performance level acc. to EN ISO 13849-1:
None
IP-rating:
IP20
Phoenix Contact Trio Power Primary-switched Power Supply 24V DC 320-575V AC 3 Phase 5A DIN Rail Mounted. TRIO POWER is particularly suited to standard machine production, thanks to 1- and 3-phase versions up to 960 W. The wide-range input and the international approval package enable worldwide use.
The robust metal housing, the high electric strength, and the wide temperature range ensure a high level of power supply reliability.
- TRIO POWER power supplies with standard functionality
- TRIO POWER is particularly suited to standard machine production, thanks to 1- and 3-phase versions up to 960 W. The wide-range input and the international approval package enable worldwide use.
- The robust metal housing, the high electric strength, and the wide temperature range ensure a high level of power supply reliability.
- Your advantages
- Use the third negative terminal block as a grounding terminal block and minimize installation costs
- Rugged design with metal housing and wide temperature range from -25 to +70°C
- Maximum operational reliability thanks to high MTBF (mean time between failures) of more than 500,000 hours and high dielectric strength of up to 300 V AC
- Compensation of voltage drops by means of output voltage that can be adjusted on the front
