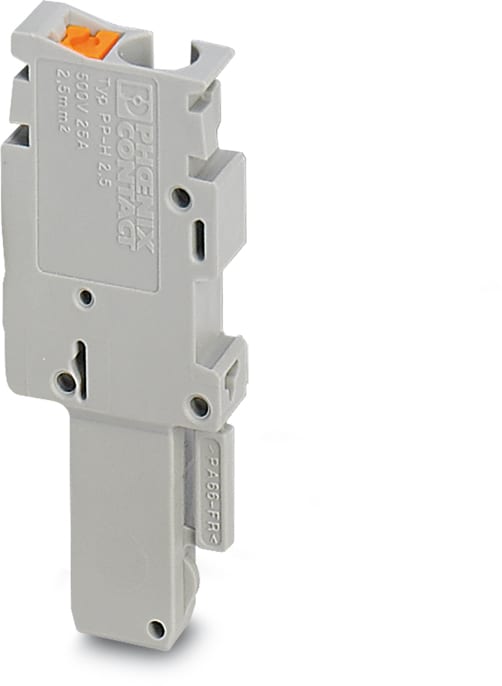

Phoenix Contact - PP-H 2,5/1-M BU - 3210101

Model:

Bus insert

Connectable conductor cross section fine-strand without cable end sleeve:

0.14...2.5 mm²

Rated current In:

24 A

Type of electric plug connection:

Spring clamp connection

Number of poles:

1

Connectable conductor cross section:

0.14...4 mm²

Connectable conductor cross section fine-strand with cable end sleeve:

0.14...2.5 mm²

Connectable conductor cross section solid-core:

0.14...4 mm²

Connectable conductor cross section multi-wired:

0.14...2.5 mm²

Total number of poles (without ground contact):

1

Width:

5.2 mm

Stackable:

yes
