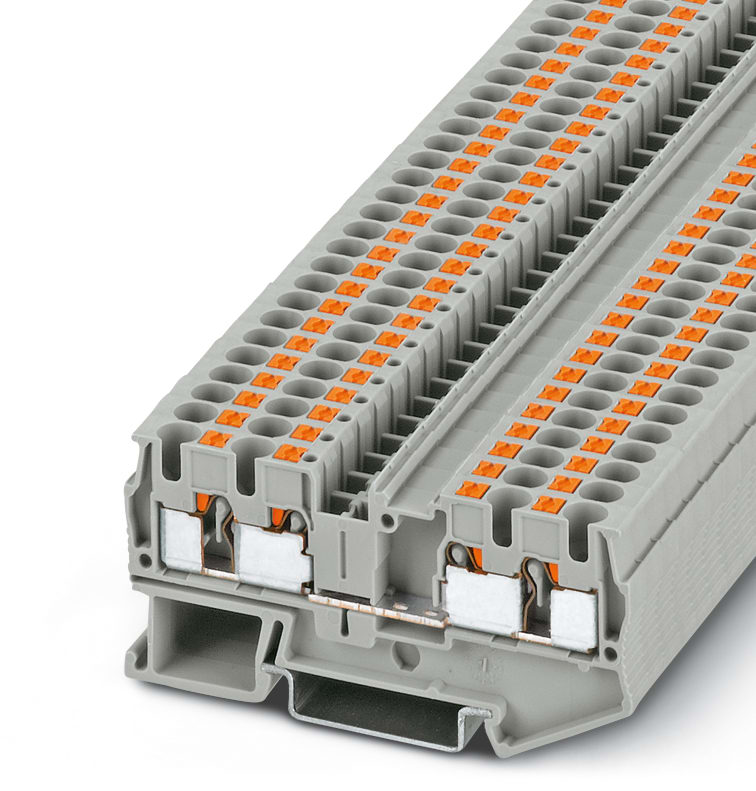

Phoenix Contact - PT 4-QUATTRO - 3211797

Connectable conductor cross section fine-strand without cable end sleeve:

0.25...4 mm²

Rated current In:

38 A

Type of electrical connection 1:

Plug-in connection

Number of clamp positions per level:

4

Mounting method:

DIN rail (top hat rail)/G-rail

Connectable conductor cross section fine-strand with cable end sleeve:

0.25...4 mm²

Connectable conductor cross section solid-core:

0.2...6 mm²

Connectable conductor cross section multi-wired:

0.5...1 mm²

Rated voltage:

8000 V

Type of electrical connection 2:

Plug-in connection

Number of levels:

1

Material insulation body:

Other

Operation temperature:

-60...130 °C

Width:

6.2 mm

Depth:

77 mm

Explosion-tested version 'Ex e':

no

End plate required:

no

Colour:

Grey

Internally connected levels:

no
