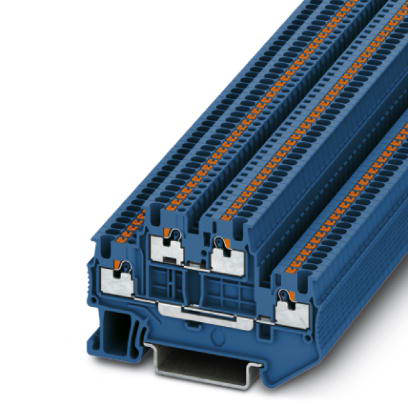

Phoenix Contact - PTTB 1,5/S BU - 3208524

Connectable conductor cross section fine-strand without cable end sleeve:

0.14...1.5 mm²

Rated current In:

16 A

Mounting method:

DIN rail (top hat rail) 35 mm

Connectable conductor cross section fine-strand with cable end sleeve:

0.14...1.5 mm²

Connectable conductor cross section solid-core:

0.14...1.5 mm²

Connectable conductor cross section multi-wired:

0.14...1.5 mm²

Rated voltage:

500 V

Number of levels:

2

Material insulation body:

Thermoplastic

Operation temperature:

-70...130 °C

Width:

3.5 mm

Depth:

65.4 mm

Explosion-tested version 'Ex e':

yes

End plate required:

yes

Colour:

Blue

Internally connected levels:

no
