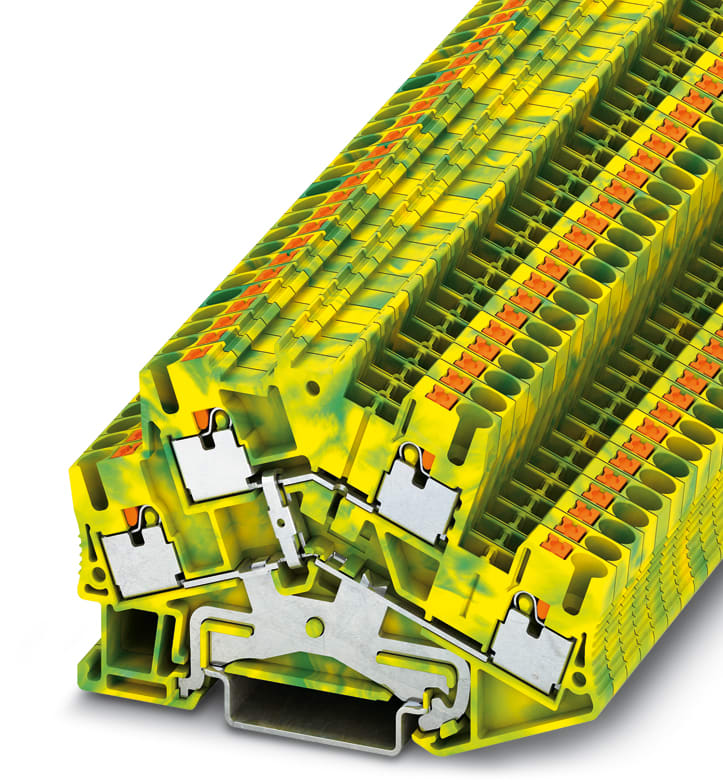

Phoenix Contact - PTTBS 2,5-PE - 3209620

PEN function possible:

no

Connectable conductor cross section fine-strand without cable end sleeve:

0.14...2.5 mm²

Type of electrical connection 1:

Plug clamp connection

Number of levels:

2

Number of clamp positions per level:

2

Connectable conductor cross section fine-strand with cable end sleeve:

0.14...2.5 mm²

Connectable conductor cross section solid-core:

0.14...4 mm²

Connectable conductor cross section multi-wired:

0.14...2.5 mm²

Type of electrical connection 2:

Plug clamp connection

Mounting method:

DIN rail (top hat rail) 35 mm

Material insulation body:

Thermoplastic

Operation temperature:

-60...130 °C

Width:

5.2 mm

Depth:

78 mm

End plate required:

yes

Colour:

Green/yellow
