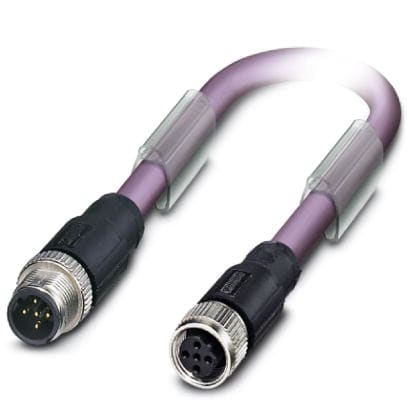

Phoenix Contact - SAC-2P-M12MSB/ 5,0-910/M12FSB - 1507382

Number of poles:

2

Type of electrical connection, field-sided:

M12

Type of plug-in contact, field sided:

Female (bus)

Cable length:

5 m

Material of cable sheath:

Other

Positioning cable feed, field-sided:

Straight

Type of electrical connection, box-sided:

M12

Type of plug-in contact, box-sided:

Male (plug)

Positioning cable feed, box-sided:

Straight

Halogen free:

no

Colour cable sheath:

Violet

With LED indication:

no

Shielded:

yes

Cable type:

Multi-core

Cross-linked by irradiation:

no

Material contact body:

CuSn

Material of contact surface:

Gold

Operating Temperature Range:

-40...80 °C

Installation Temperature Range:

-25...90 °C

Rated current In:

4 A

Rated voltage:

250 V

Continuity resistor:

5 mOhm
