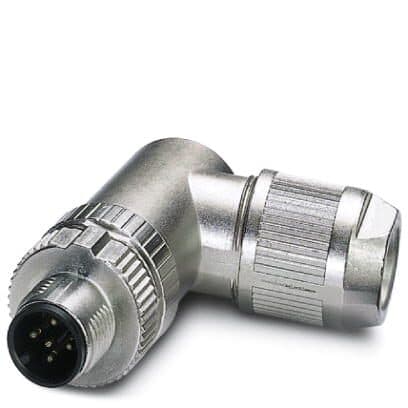

Phoenix Contact - SACC-M12MR-5PL SH - 1424659
/ each
£27.87
Delivery
Essential specifications
For cable outer diameter - 4...8 mm
Type of housing - Angled
Rated current In - 4 A
Ambient temperature - -40...85 °C
Rated voltage - 48 V
Packaging
1 each
GTIN
4055626375861
Supplier Ref
1424659
Manufacturer Ref
1424659
Commercial Reference
1424659
For cable outer diameter:
4...8 mm
Type of housing:
Angled
Rated current In:
4 A
Ambient temperature:
-40...85 °C
Rated voltage:
48 V
Over voltage category:
II
Pollution degree:
3
Material of contact surface:
Nickel
Material housing:
Other
Inflammability class of insulation material acc. with UL94:
V0
Degree of protection (IP), mounted:
IP65
Min. number of insertion cycles:
100
Shielded:
yes
Connector, Universal, 5-position, shielded, Plug angled M12, Coding: A, Push-in connection, knurl material: Zinc die-cast, nickel-plated, external cable diameter 4 mm ... 8 mm
