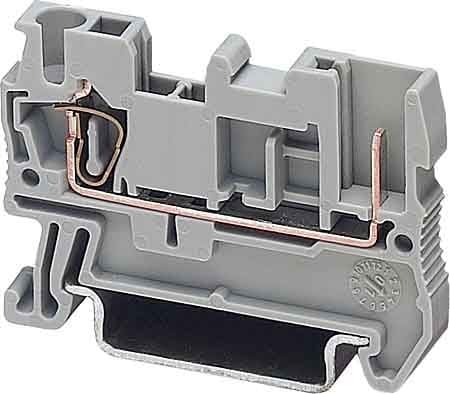

Phoenix Contact - ST 2,5/ 1P - 3040012

Connectable conductor cross section fine-strand without cable end sleeve:

0.08...2.5 mm²

Rated current In:

24 A

Type of electrical connection 1:

Spring clamp connection

Number of clamp positions per level:

2

Mounting method:

DIN rail (top hat rail) 35 mm

Connectable conductor cross section fine-strand with cable end sleeve:

0.14...2.5 mm²

Connectable conductor cross section solid-core:

0.08...2.5 mm²

Connectable conductor cross section multi-wired:

0.08...2.5 mm²

Rated voltage:

500 V

Type of electrical connection 2:

Spring clamp connection

Number of levels:

1

Material insulation body:

Thermoplastic

Operation temperature:

-50...-50 °C

Width:

5.2 mm

Depth:

48.5 mm

Explosion-tested version 'Ex e':

no

End plate required:

yes

Colour:

Grey

Internally connected levels:

no
