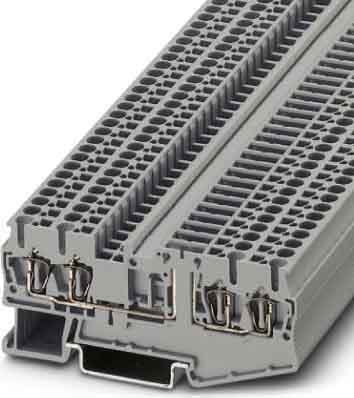

Phoenix Contact - ST 2,5-QUATTRO-TG - 3038451

Connectable conductor cross section fine-strand without cable end sleeve:

0.08...2.5 mm²

Rated current In:

20 A

Type of electrical connection 1:

Spring clamp connection

Number of clamp positions per level:

4

Connectable conductor cross section fine-strand with cable end sleeve:

0.14...2.5 mm²

Connectable conductor cross section solid-core:

0.08...4 mm²

Connectable conductor cross section multi-wired:

0.08...2.5 mm²

Rated voltage:

400 V

Type of electrical connection 2:

Spring clamp connection

Number of levels:

1

Internally connected levels:

no

Mounting method:

DIN rail (top hat rail) 35 mm

Material insulation body:

Thermoplastic

Width:

5.2 mm

Depth:

84 mm

End plate required:

yes

Colour:

Grey

With integrated test socket:

no
