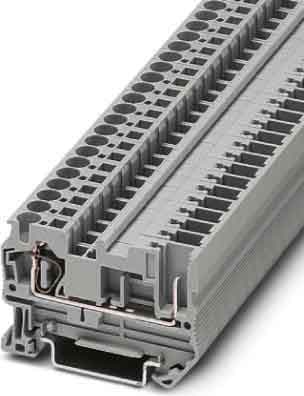

Phoenix Contact - ST 4/ 1P - 3042719

Connectable conductor cross section fine-strand without cable end sleeve:

0.08...4 mm²

Rated current In:

32 A

Type of electrical connection 1:

Spring clamp connection

Number of clamp positions per level:

2

Mounting method:

DIN rail (top hat rail) 35 mm

Connectable conductor cross section fine-strand with cable end sleeve:

0.14...4 mm²

Connectable conductor cross section solid-core:

0.08...4 mm²

Connectable conductor cross section multi-wired:

0.08...4 mm²

Rated voltage:

800 V

Type of electrical connection 2:

Spring clamp connection

Number of levels:

1

Material insulation body:

Thermoplastic

Width:

6.2 mm

Depth:

55.8 mm

Explosion-tested version 'Ex e':

no

End plate required:

yes

Colour:

Grey

Internally connected levels:

no
