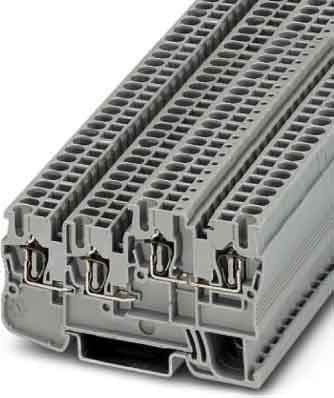

Phoenix Contact - STIO 2,5/3-2B/L - 3209015

Connectable conductor cross section fine-strand without cable end sleeve:

0.08...2.5 mm²

Rated current In:

18 A

Rated voltage:

250 V

Number of clamp positions per level:

2

Type of electrical connection 1:

Spring clamp connection

Connectable conductor cross section fine-strand with cable end sleeve:

0.14...2.5 mm²

Connectable conductor cross section solid-core:

0.08...4 mm²

Connectable conductor cross section multi-wired:

0.08...2.5 mm²

Number of levels:

2

Internally connected levels:

no

Type of electrical connection 2:

Spring clamp connection

Mounting method:

DIN rail (top hat rail) 35 mm

Material insulation body:

Thermoplastic

Inflammability class of insulation material acc. with UL94:

V0

Width:

5.2 mm

Depth:

75 mm

Explosion-tested version 'Ex e':

no

End plate required:

yes

Colour:

Grey

With PE connection:

no
