Phoenix Contact - TCP 1A - 0712194
£15.18
/ each
£15.18
1
Delivery
Number of available items for delivery:0
Essential specifications
Number of poles (total) - 1
Number of protected poles - 1
Rated current - 1 A
Concurrently switching N-neutral - no
Built-in depth - 44.5 mm
Packaging
1 each
GTIN
4017918848354
Supplier Ref
0712194
Manufacturer Ref
0712194
Commercial Reference
0712194
Number of poles (total):
1
Number of protected poles:
1
Rated current:
1 A
Concurrently switching N-neutral:
no
Built-in depth:
44.5 mm
Rated voltage:
250 V
Voltage type:
AC/DC
Frequency:
50...50 Hz
Over voltage category:
2
Pollution degree:
2
IP-rating:
IP40

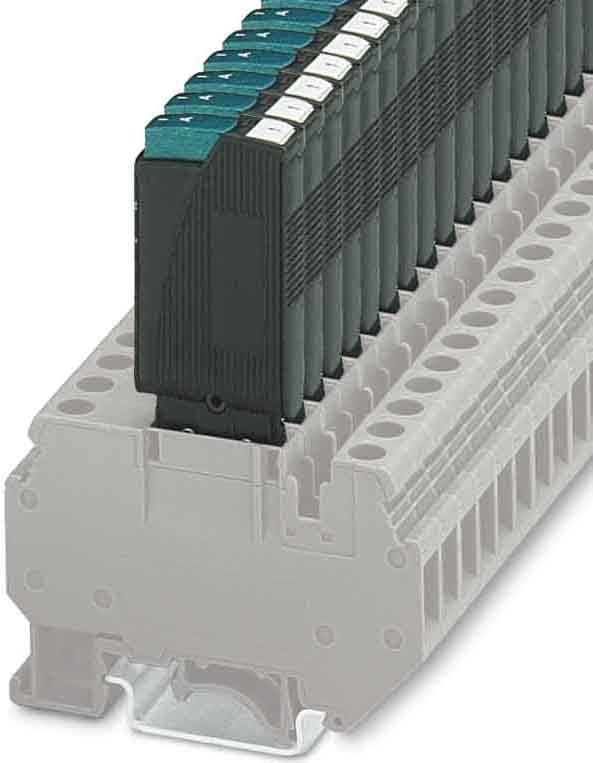

Thermal miniature circuit breaker, pluggable in screw-type fuse terminal block UK 6-FSI/C and spring-cage fuse terminal block ST 4-FSI/C
- A version with screw or spring-cage connection is used as a basic terminal block
- The reclosable thermal circuit breaker is available in ten nominal current levels ranging from 0.1 to 10 A
- Compact design
- The integrated switching function enables immediate reclosure and therefore ensures the availability of the system
