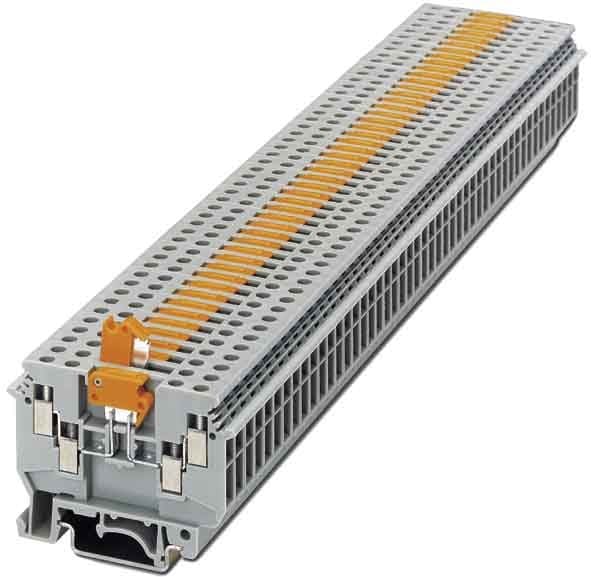

Phoenix Contact - UDK 4-MTK-P/P - 2775210
/ 50 each
£4.48
Delivery
Essential specifications
Connectable conductor cross section fine-strand without cable end sleeve - 0.2...4 mm²
Rated current In - 16 A
Type of electrical connection 1 - Screw connection
Number of clamp positions per level - 4
Type of slitting - Swivelling
Packaging
1 each
GTIN
4017918068516
Supplier Ref
2775210
Manufacturer Ref
2775210
Commercial Reference
2775210
Connectable conductor cross section fine-strand without cable end sleeve:
0.2...4 mm²
Rated current In:
16 A
Type of electrical connection 1:
Screw connection
Number of clamp positions per level:
4
Type of slitting:
Swivelling
Connectable conductor cross section fine-strand with cable end sleeve:
0.25...4 mm²
Connectable conductor cross section solid-core:
0.2...6 mm²
Connectable conductor cross section multi-wired:
0.2...4 mm²
Rated voltage:
630 V
Type of electrical connection 2:
Screw connection
Number of levels:
1
Internally connected levels:
no
Mounting method:
DIN rail (top hat rail) 35 mm
Material insulation body:
Thermoplastic
Width:
6.2 mm
Depth:
63.5 mm
End plate required:
yes
Colour:
Grey
Type of cross disconnection:
None
With integrated test socket:
yes
Knife disconnect terminal block, With test socket screws for insertion of test plugs, Connection type: Screw connection, Cross section: 0.2 mm² - 6 mm², AWG: 24 - 10, Nominal current: 16 A, Nominal voltage: 630 V, Length: 63.5 mm, Width: 6.2 mm, Color: gray, Assembly: NS 35/7,5, NS 35/15, NS 32
- Closed housing of double-level terminal blocks
- Space-saving design just 6.2 mm wide
- User-friendly disconnect knife operation
