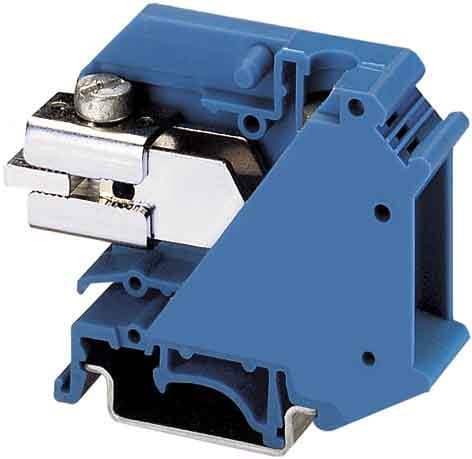

Phoenix Contact - UIKN 35 BU - 3034015

Connectable conductor cross section fine-strand without cable end sleeve:

0.75...35 mm²

Rated current In:

75 A

Type of electric plug connection:

Screw connection

Number of clamp positions:

1

Mounting method:

DIN rail (top hat rail) 35 mm

Connectable conductor cross section fine-strand with cable end sleeve:

0.75...35 mm²

Connectable conductor cross section solid-core:

0.75...35 mm²

Rated voltage:

400 V

Material insulation body:

Thermoplastic

Inflammability class of insulation material acc. with UL94:

V2

Width:

15 mm

Depth:

58.5 mm

Connecting plate required:

yes

Colour:

Blue

Suitable for N-busbar:

3x10 mm
