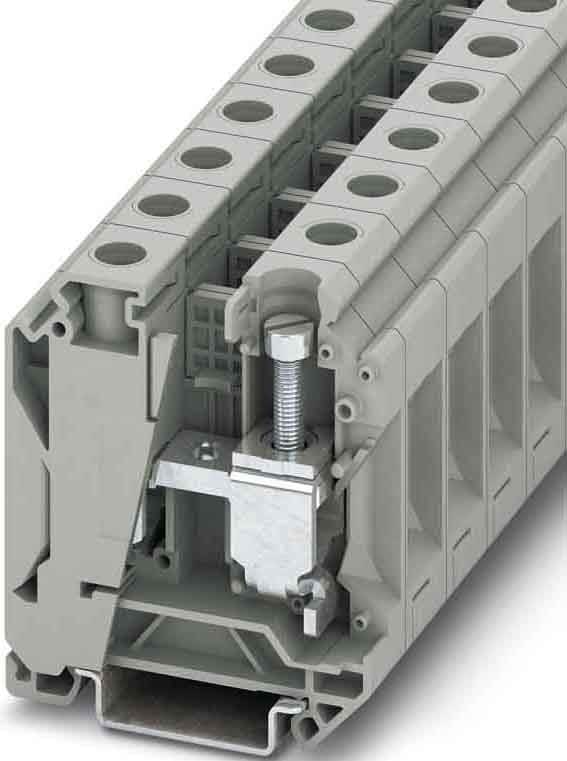

Phoenix Contact - UK 35 N - 3074130

Connectable conductor cross section fine-strand without cable end sleeve:

10...35 mm²

Rated current In:

125 A

Type of electrical connection 1:

Screw connection

Number of clamp positions per level:

2

Mounting method:

DIN rail (top hat rail) 35 mm

Connectable conductor cross section fine-strand with cable end sleeve:

10...35 mm²

Connectable conductor cross section solid-core:

10...35 mm²

Connectable conductor cross section multi-wired:

10...35 mm²

Rated voltage:

1000 V

Type of electrical connection 2:

Screw connection

Number of levels:

1

Material insulation body:

Thermoplastic

Width:

16 mm

Depth:

54.5 mm

Explosion-tested version 'Ex e':

no

End plate required:

no

Colour:

Grey

Internally connected levels:

no
