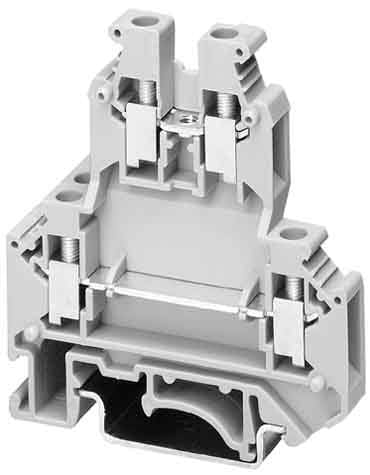

Phoenix Contact - UKK 5-PE - 2774211

PEN function possible:

no

Connectable conductor cross section fine-strand without cable end sleeve:

0.2...4 mm²

Type of electrical connection 1:

Screw connection

Number of levels:

2

Number of clamp positions per level:

2

Connectable conductor cross section fine-strand with cable end sleeve:

0.25...4 mm²

Connectable conductor cross section solid-core:

0.2...4 mm²

Connectable conductor cross section multi-wired:

0.2...4 mm²

Type of electrical connection 2:

Screw connection

Mounting method:

DIN rail (top hat rail) 35 mm

Material insulation body:

Thermoplastic

Width:

6.2 mm

Depth:

56 mm

End plate required:

no

Colour:

Green/yellow
