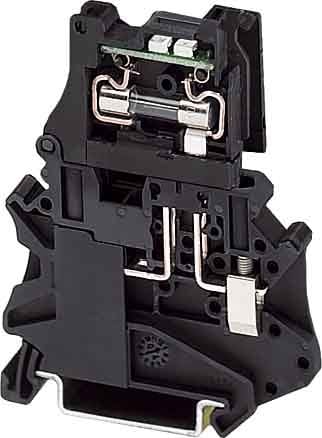

Phoenix Contact - UT 4-HESILA 250 (5X20) - 3046100

Type of fuse insert:

G-fuse 5x20 mm

Type of fuse holder:

Swivelling

Connectable conductor cross section fine-strand without cable end sleeve:

0.14...6 mm²

Type of electrical connection 1:

Screw connection

Number of levels:

1

Type of indication element for defect indication:

Glow lamp

Supply voltage for defect-indication:

110...250 V

Connectable conductor cross section fine-strand with cable end sleeve:

0.14...4 mm²

Connectable conductor cross section solid-core:

0.14...6 mm²

Connectable conductor cross section multi-wired:

0.14...6 mm²

Rated current In:

6.3 A

Rated voltage:

250 V

Type of electrical connection 2:

Screw connection

Mounting method:

DIN rail (top hat rail) 35 mm

Material insulation body:

Thermoplastic

Width:

6.2 mm

Depth:

57.8 mm

End plate required:

no

Colour:

Black
