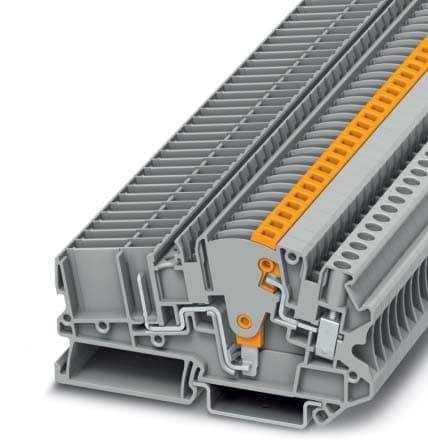

Phoenix Contact - UTME 4-CT/1P - 3057432

Connectable conductor cross section fine-strand without cable end sleeve:

0.14...4 mm²

Rated current In:

28 A

Type of electrical connection 1:

Other

Number of clamp positions per level:

2

Connectable conductor cross section fine-strand with cable end sleeve:

0.14...4 mm²

Connectable conductor cross section solid-core:

0.14...6 mm²

Connectable conductor cross section multi-wired:

0.14...4 mm²

Rated voltage:

500 V

Type of electrical connection 2:

Other

Number of levels:

1

Internally connected levels:

no

Mounting method:

DIN rail (top hat rail) 35 mm

Material insulation body:

Thermoplastic

Width:

6.2 mm

Depth:

86.5 mm

End plate required:

yes

Colour:

Grey

With integrated test socket:

no
