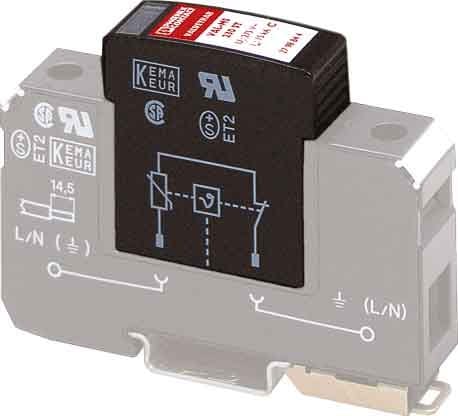

Phoenix Contact - VAL-MS 230 ST - 2798844

Nominal discharge surge current (8/20):

20 kA

Nominal voltage AC:

230 V

Voltage protection level:

1.35 kV

Mounting method:

On basic element

Max. continuous voltage AC:

275 V

Voltage protection level L-N:

1.35 kV

Voltage protection level N-PE:

1.35 kV

Integrated backup fuse:

no

Construction size:

1 modular spacing

Max. conductor cross section solid (solid, stranded):

35 mm²

Max. conductor cross section flexible (fine-strand):

25 mm²

With remote signalling contact:

no

Signalling at the device:

Optic

Category type 2:

yes
