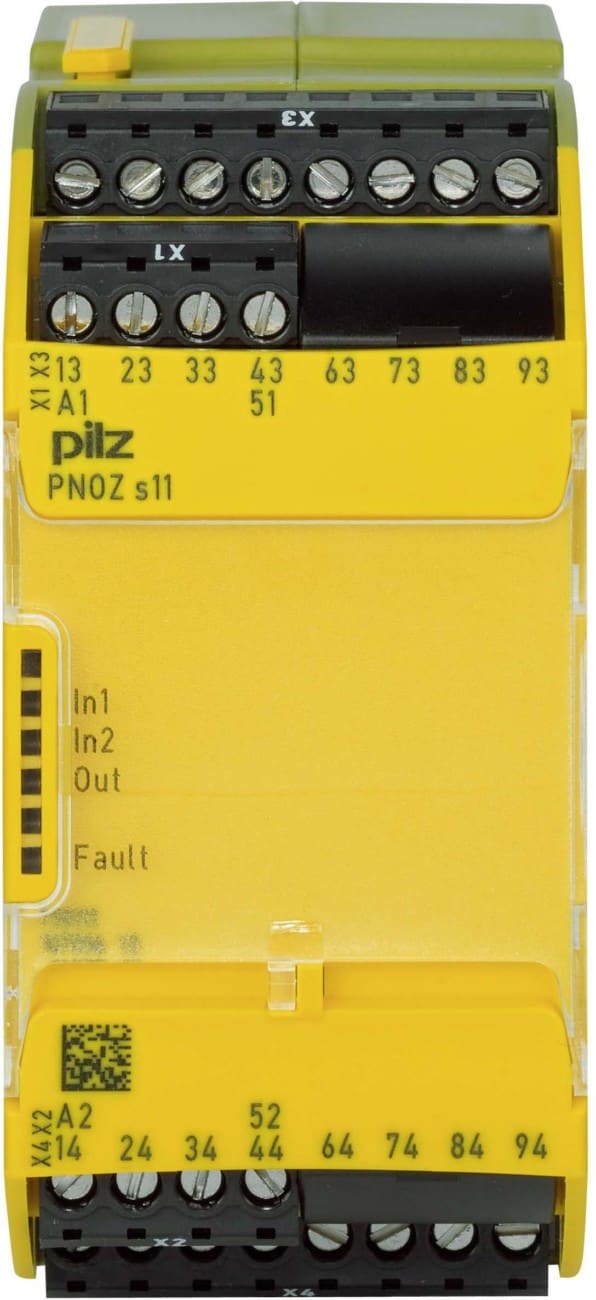

Pilz - Pilz PNOZ sigma 11 24VDC 8NO 1NC - 750111

Model:

Basic device

Voltage type of supply voltage:

DC

Supply voltage AC 50 Hz:

240...240 V

Supply voltage DC:

24...24 V

Evaluation inputs:

1-channel

Rail mounting possible:

yes

With detachable clamps:

yes

Type of electric plug connection:

Screw connection

With start input:

yes

With muting function:

no

Number of outputs, safety related, instantaneous, with contact:

3

Number of outputs, signalling function, instantaneous, with contact:

1

Number of outputs, signalling function, delayed, with contact:

0

Number of outputs, signalling function, delayed, semiconductors:

0

Stop category acc. to IEC 60204:

0

Performance level acc. to EN ISO 13849-1:

Level e

With approval for BG BIA:

no

With approval according to UL:

yes

Width:

45 mm

Height:

87 mm

Depth:

121 mm
