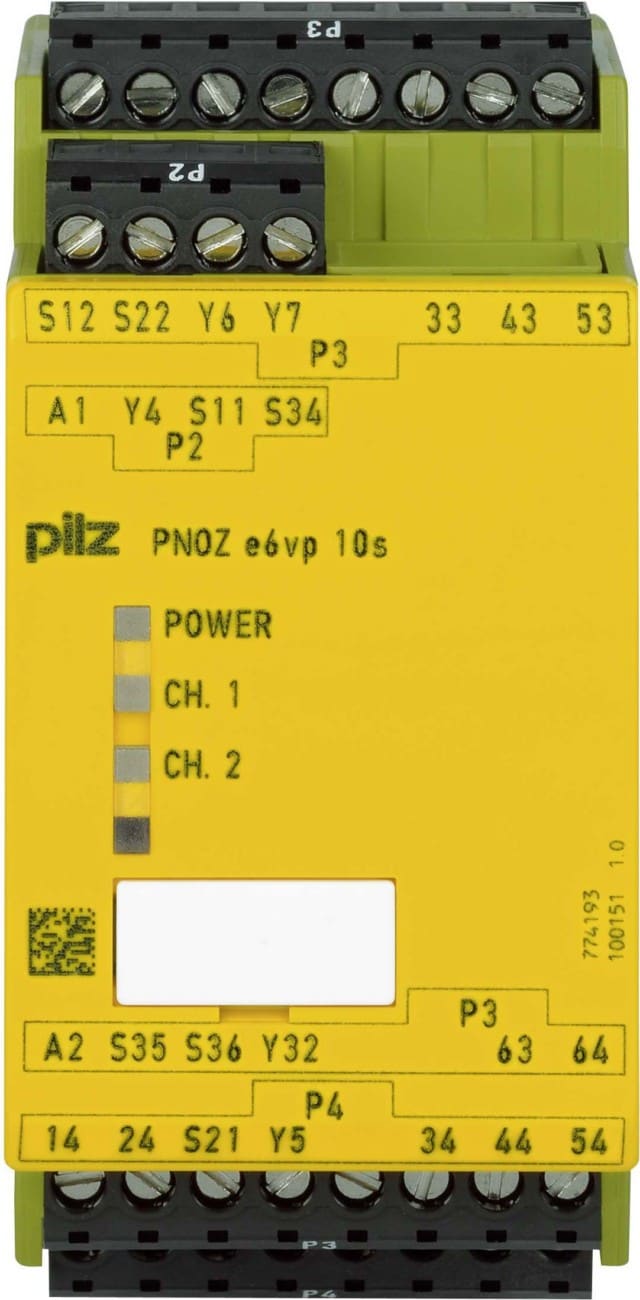

Pilz - PNOZ E6VP - 774193

Model:

Basic device

Voltage type of supply voltage:

DC

Supply voltage DC:

24...24 V

Evaluation inputs:

2-channel

Rail mounting possible:

yes

With detachable clamps:

yes

Type of electric plug connection:

Screw connection

Suitable for monitoring of position switches:

no

Suitable for monitoring of emergency-stop circuits:

yes

Suitable for monitoring of valves:

no

Suitable for monitoring of optoelectronic protection equipment:

yes

Suitable for monitoring of tactile sensors:

yes

Suitable for monitoring of magnetic switches:

no

Suitable for monitoring of proximity switches:

no

With muting function:

no

Number of outputs, safety related, instantaneous, with contact:

1

Number of outputs, safety related, delayed, with contact:

1

Number of outputs, safety related, instantaneous, semiconductors:

0

Number of outputs, safety related, delayed, semiconductors:

0

Number of outputs, signalling function, instantaneous, with contact:

0

Number of outputs, signalling function, delayed, with contact:

0

Number of outputs, signalling function, instantaneous, semiconductors:

0

Number of outputs, signalling function, delayed, semiconductors:

0

Performance level acc. to EN ISO 13849-1:

Level e

With approval for BG BIA:

no

With approval according to UL:

yes

Width:

45 mm

Height:

94 mm

Depth:

121 mm
