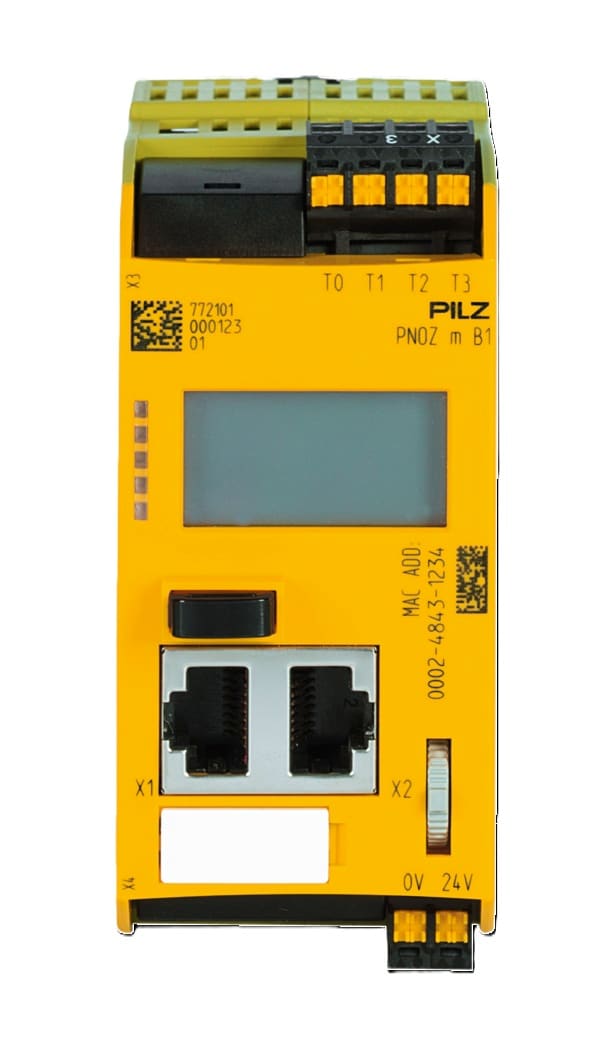

Pilz - PNOZmulti 2 Base Unit with USB and Ethernet Ports 24 V DC - 772101

Model:

Basic device

Voltage type of supply voltage:

DC

Supply voltage DC:

24...24 V

Evaluation inputs:

1-channel

Rail mounting possible:

yes

Type of electric plug connection:

Screw connection

With muting function:

no

Number of outputs, signalling function, delayed, with contact:

0

Number of outputs, signalling function, delayed, semiconductors:

0

Performance level acc. to EN ISO 13849-1:

Level e

With approval for BG BIA:

no

With approval according to UL:

yes

Width:

45 mm

Height:

120.2 mm

Depth:

98 mm
