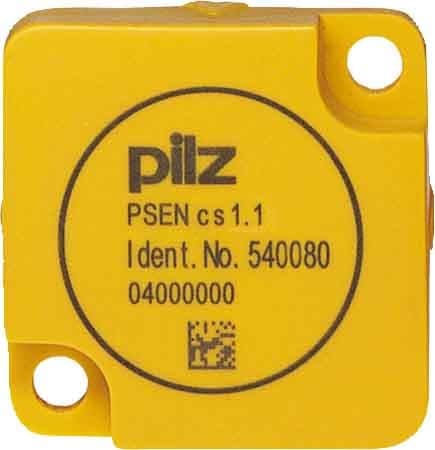

Pilz - PSEN cs1.1 1 actuator 1 Unit - 540080
/ each
£17.37
Delivery
Essential specifications
Switching distance - 15 mm
Number of protected contact energized outputs - 2
Type of actuation - Transponder
Type of electric plug connection - Connector M12
Type of switching output - Other
Packaging
1 each
GTIN
4046548003031
Supplier Ref
540080
Manufacturer Ref
540080
Commercial Reference
540080
Switching distance:
15 mm
Number of protected contact energized outputs:
2
Type of actuation:
Transponder
Type of electric plug connection:
Connector M12
Type of switching output:
Other
Width sensor:
40 mm
Height of sensor:
11 mm
Material housing:
Plastic
Protected switch distance OFF:
40 mm
Protected switch distance ON:
15 mm
With status indication:
no
IP-rating:
IP67
Magnetic safety switch. Coded. PSEN cs 1.1 1 Actuator. Coded. IP6K9K
- Transponder technology for presence detection
- Pilz coding type: Coded
- Dual-channel operation
- 2 safety inputs for series connection of multiple safety switches
- 2 safety outputs
- Safety Device Diagnostics (SDD)
- – Safety Device Diagnostics can be used to poll sensor information, to perform actions and to read configuration parameters
- – Manipulation protection in accordance with ISO 14119 (chap. 7.2.d) is possible by verifying the short name of the actuator through the controller via SDD communication
- Diagnostic input for Y1 for Safety Device Diagnostics (SDD)
- Signal output/diagnostic output Y32 for Safety Device Diagnostics
- LED display for:
- – State of the actuator
- – State of the inputs
- – Supply voltage/fault
- 4 directions of actuation
