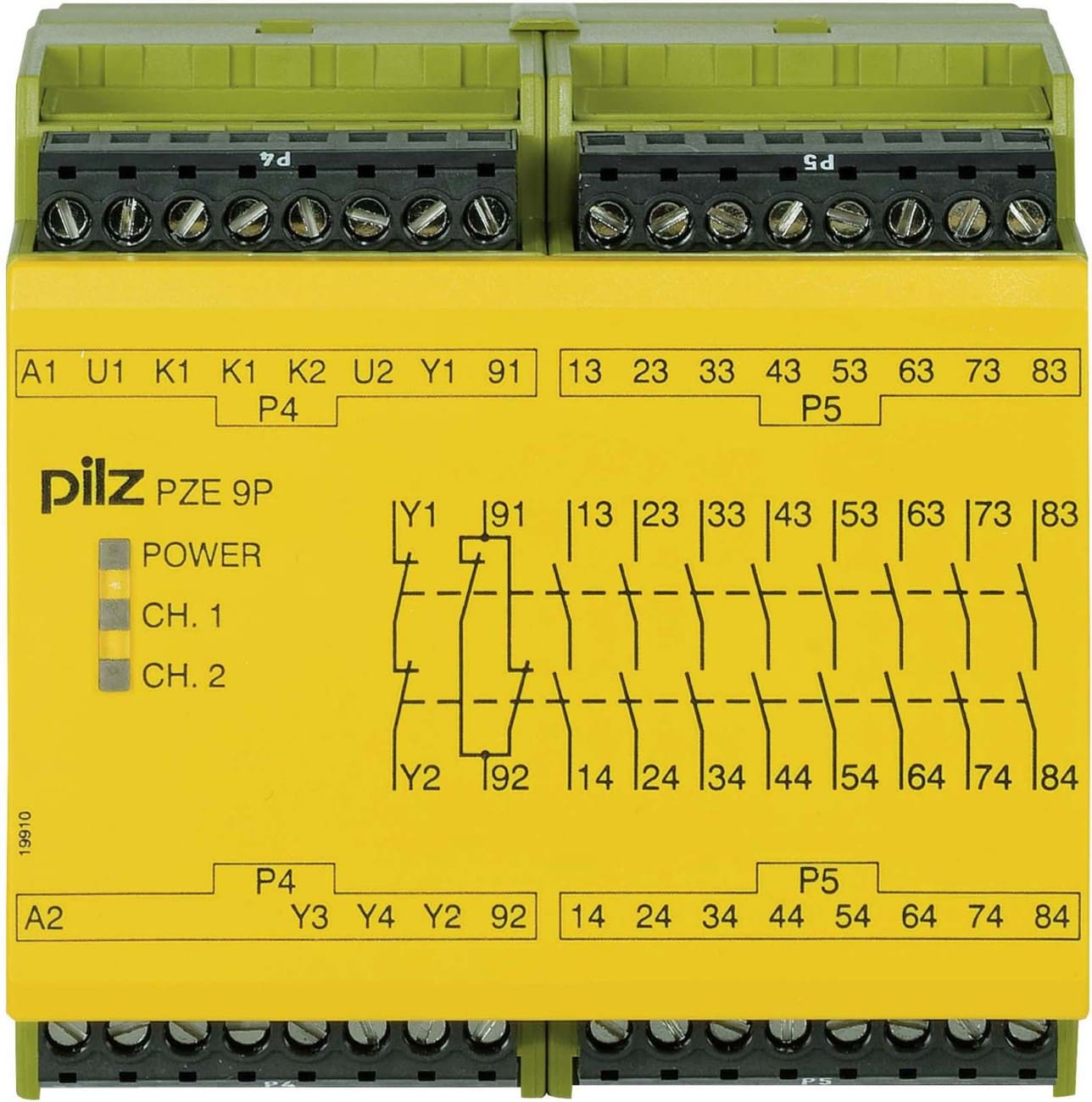

Pilz - PZE 9P 24VACDC 8n/o 1n/c - 777140

Model:

Basic device

Voltage type of supply voltage:

AC/DC

Supply voltage AC 50 Hz:

24...24 V

Supply voltage DC:

24...24 V

Evaluation inputs:

2-channel

Rail mounting possible:

yes

Type of electric plug connection:

Screw connection

Supply voltage AC 60 Hz:

24...24 V

With muting function:

no

Number of outputs, safety related, instantaneous, with contact:

8

Number of outputs, safety related, delayed, with contact:

0

Number of outputs, safety related, instantaneous, semiconductors:

0

Number of outputs, signalling function, instantaneous, with contact:

1

Number of outputs, signalling function, delayed, with contact:

0

Number of outputs, signalling function, delayed, semiconductors:

0

Performance level acc. to EN ISO 13849-1:

Level e

With approval for BG BIA:

no

With approval according to UL:

yes

Width:

90 mm

Height:

87 mm

Depth:

121 mm
