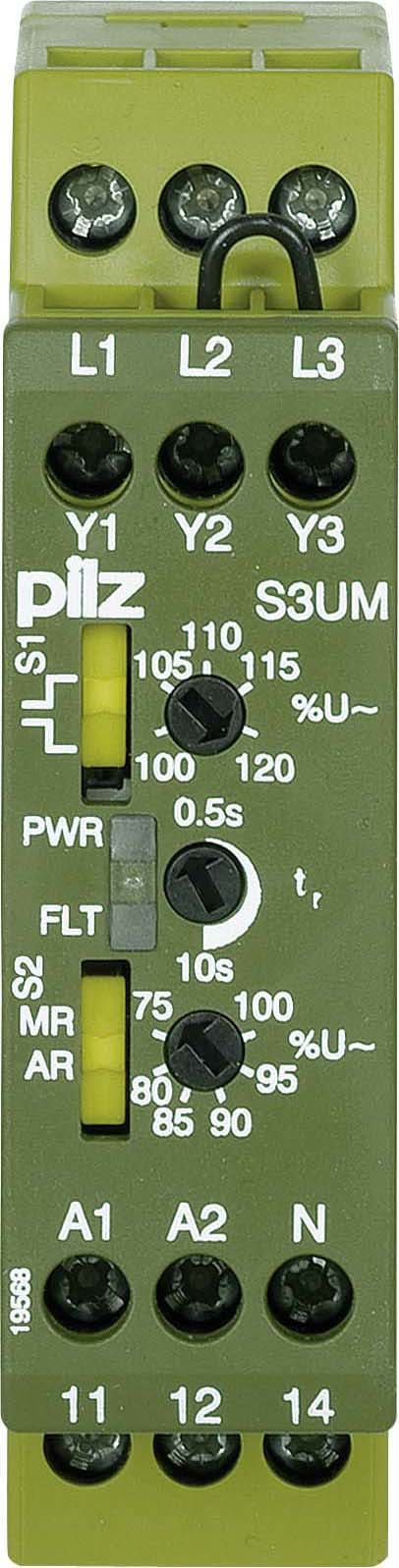

Pilz - S3UM 230VAC UM 415/460VAC - 837380

Voltage measurement range 1:

415...460 V

Type of voltage measurement range:

AC

Type of electric plug connection:

Screw connection

With detachable clamps:

no

Single-phase under voltage possible:

no

Three-phase under voltage possible:

yes

Single-phase over voltage possible:

no

Three-phase over voltage possible:

yes

Single-phase hysteresis possible:

no

Three-phase hysteresis possible:

yes

Contains function DC-under voltage:

no

Contains function DC-over voltage:

no

Contains function DC-voltage hysteresis:

no

Min. adjustable delay-on energization time:

0.5 s

Max. permitted delay-on energization time:

10 s

Number of contacts as normally closed contact:

0

Number of contacts as normally open contact:

0

Number of contacts as change-over contact:

1

Width:

22.5 mm

Height:

87 mm

Depth:

122 mm
