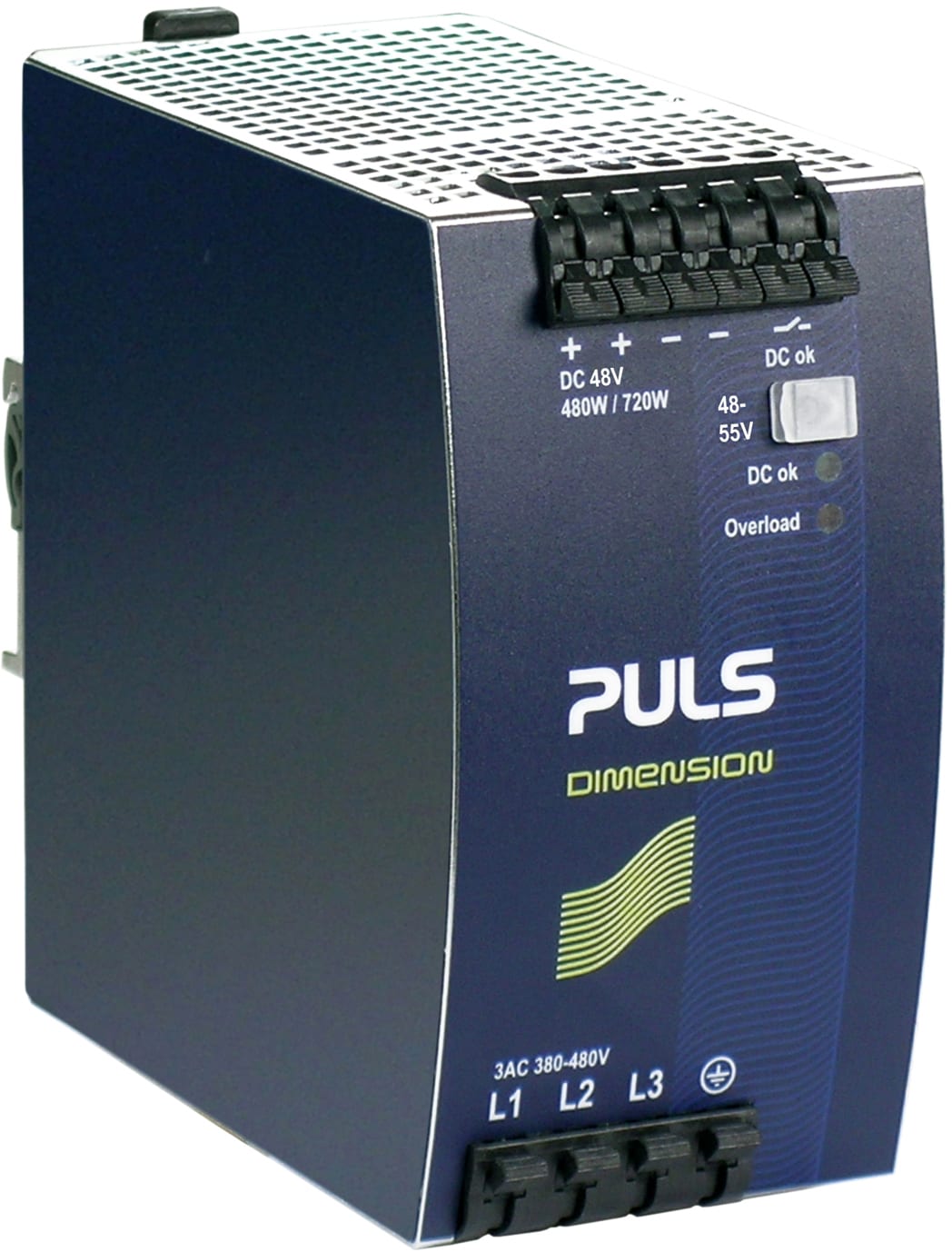

Puls - 10A 48-55Vdc 3x 380-480Vac - QT20.481

Voltage type of supply voltage:

AC/DC

Max. output current 1:

10 A

Secondary voltage adjustable:

yes

Nominal value output voltage 1:

48 V

Short-circuit-proof:

yes

Rated supply voltage at AC 50 Hz:

85...276 V

Rated supply voltage at DC:

88...375 V

Output voltage stabilized:

yes

Power output:

480 W

Type of electric plug connection:

Spring clamp connection

Rail mounting possible:

yes

Suitable for wall mounting:

no

Suitable for DIN installation panels:

yes

Width:

65 mm

Height:

124 mm

Depth:

127 mm

IP-rating:

IP20
