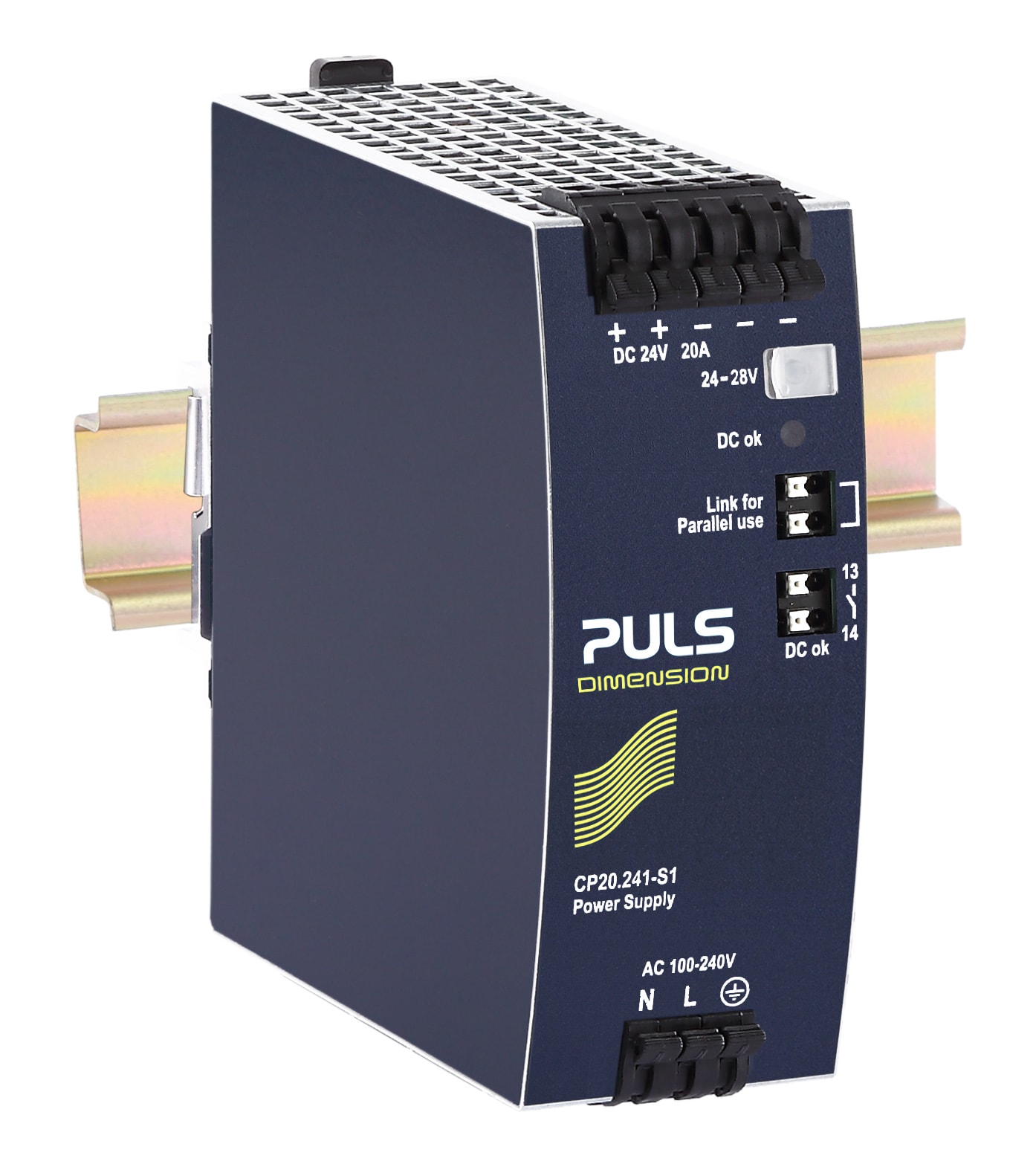

Puls - PSU 24-28Vdc 20A 100-240Vac Spring Clamp - CP20.241-S1

Voltage type of supply voltage:

AC/DC

Max. output current 1:

20 A

Secondary voltage adjustable:

yes

Nominal value output voltage 1:

24 V

Short-circuit-proof:

yes

Rated supply voltage at AC 50 Hz:

100...240 V

Rated supply voltage at DC:

24...28 V

Power output:

480 W

Type of electric plug connection:

Spring clamp connection

Rail mounting possible:

yes

Suitable for wall mounting:

no

Suitable for DIN installation panels:

yes

Direct mounting possible:

no

Width:

48 mm

Height:

124 mm

Depth:

127 mm

IP-rating:

IP20
