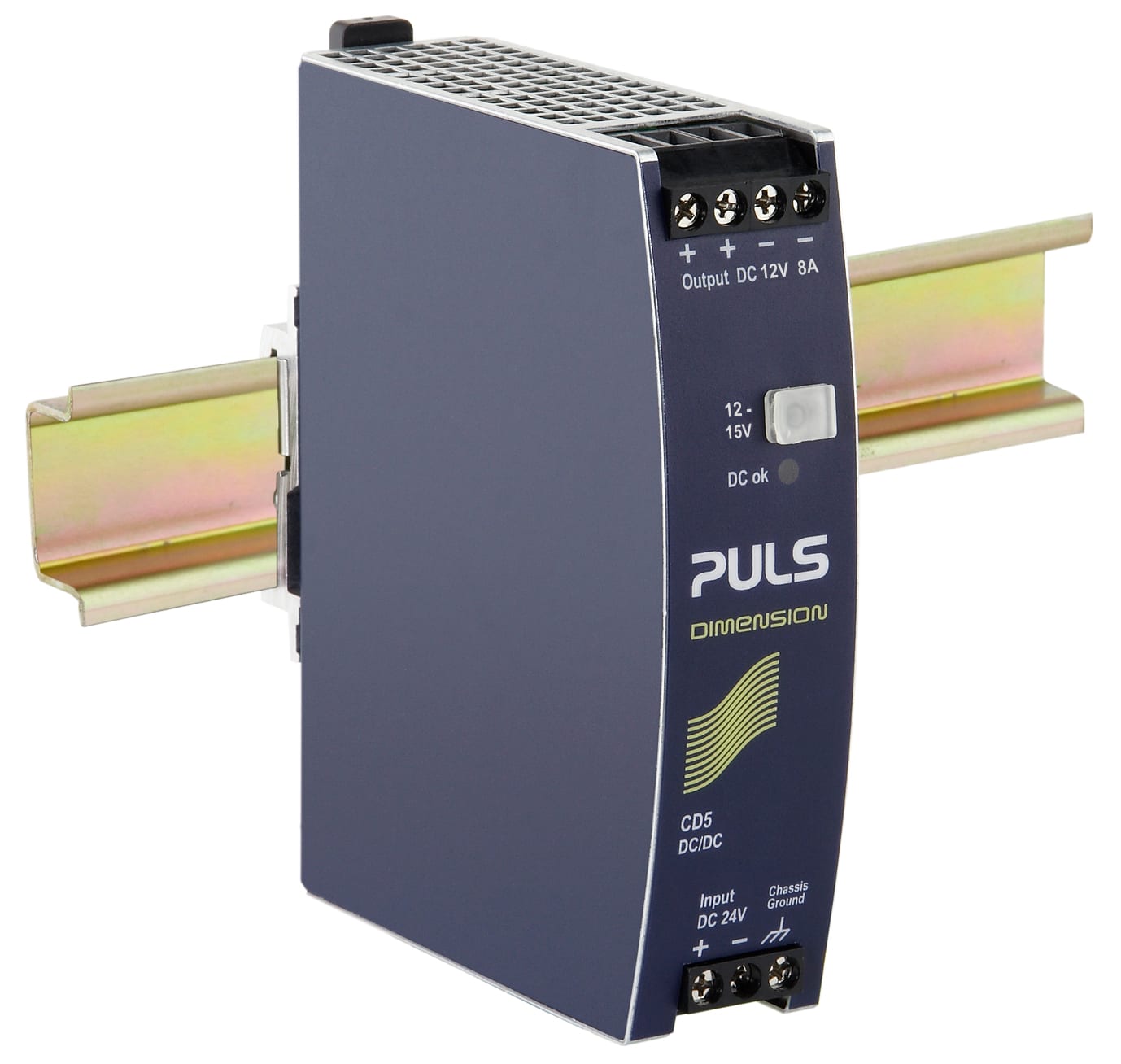

Puls - Puls DIMENSION CD-Series DC/DC Converter 12V DC 8A - CD5.121
/ each
£220.82
Delivery
Essential specifications
Primary voltage 1 - 24...24 V
Secondary voltage 1 - 12 V
IP-rating - IP20
Suitable for mounting on PCB - no
Suitable for DIN installation panels - yes
Packaging
1 each
GTIN
Supplier Ref
CD5.121
Manufacturer Ref
CD5.121
Commercial Reference
CD5.121
Primary voltage 1:
24...24 V
Secondary voltage 1:
12 V
IP-rating:
IP20
Suitable for mounting on PCB:
no
Suitable for DIN installation panels:
yes
Width:
32 mm
Height:
124 mm
Depth:
102 mm
Puls DIMENSION CD-Series DC/DC Converter 12V DC 24V DC Input 8A DIN Rail Mounted. The C D-Series is part of the DIMENSION power supply family. The most outstanding features of the range are the high efficiency, the small size and the wide operational temperature range. High immunity to transients and power surges as well as low electromagnetic emission and a large international approval package for a variety of applications.
- 24V DC-Input
- Isolated 12Vdc Output
- Efficiency up to 88.2%
- Width only 32mm
- 20% Output Power Reserves
- Full Power Between -25°C and +60°C
- Soft-start Function Included
- Minimal Inrush Current Surge
- Reverse Input Polarity Protection
- 3 Year Warranty
