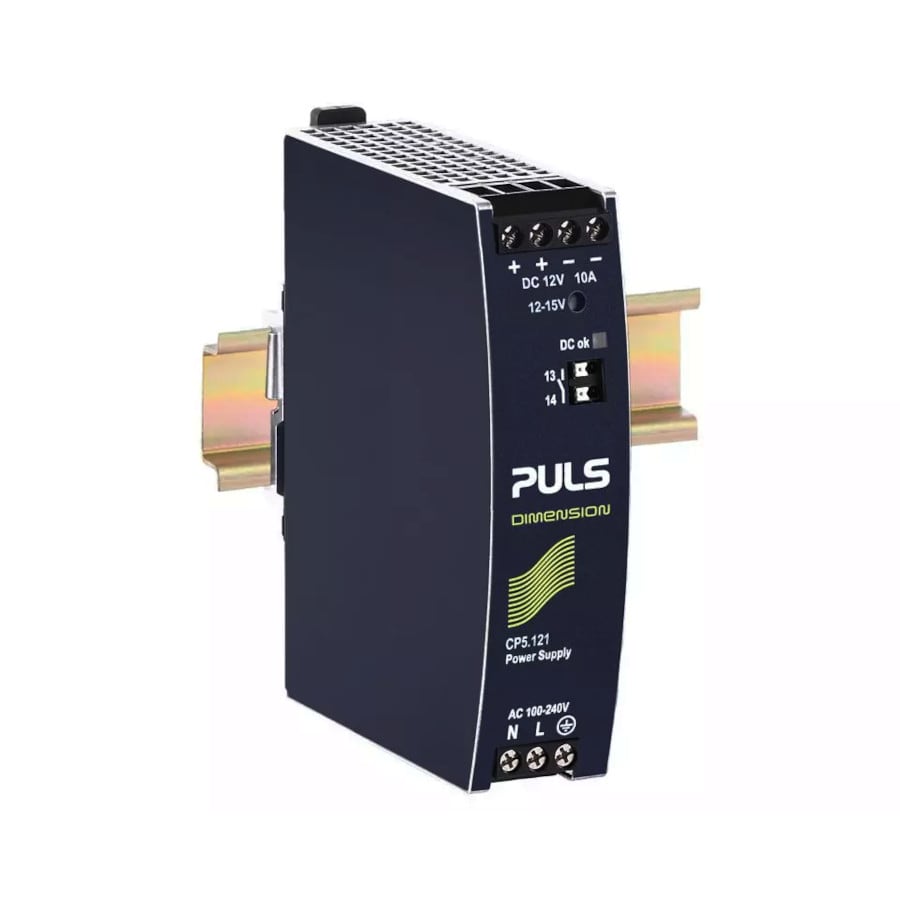

Puls - Puls DIMENSION CP-Series Power supply 12V DC 10A - CP5.121
/ each
£153.74
Delivery
Essential specifications
Voltage type of supply voltage - DC
Nominal value output voltage 1 - 12 V
Nominal value output current 1 - 10 A
Rated supply voltage at AC 50 Hz - 100...240 V
Rated supply voltage at DC - 110...150 V
Packaging
1 each
GTIN
Supplier Ref
CP5.121
Manufacturer Ref
CP5.121
Commercial Reference
CP5.121
Voltage type of supply voltage:
DC
Nominal value output voltage 1:
12 V
Nominal value output current 1:
10 A
Rated supply voltage at AC 50 Hz:
100...240 V
Rated supply voltage at DC:
110...150 V
Power output:
120 W
Width:
32 mm
Height:
124 mm
Depth:
102 mm
Puls DIMENSION CP-Series Power supply 12V DC 100-240V AC Input 10A DIN Rail Mounted. The DIMENSION CP-Series units are high-end power supplies in a medium price range without compromising quality, reliability and performance. The CP-Series is part of the DIMENSION power supply family. The most outstanding features of CP10 series are the high efficiency, advanced inrush current limitation, active PFC and the wide operational temperature range.
- AC 100-240V Wide-range input
- Width only 32mm
- Efficiency up to 94.0%
- Excellent partial load efficiency
- 20% output power reserves
- Easy fuse breaking – 3 times nominal current for 12ms
- Safe HiccupPLUS overload mode
- Active power factor correction (PFC)
- Minimal inrush current surge
- Full power between -25°C and +60°C
- DC-OK relay contact
Puls
