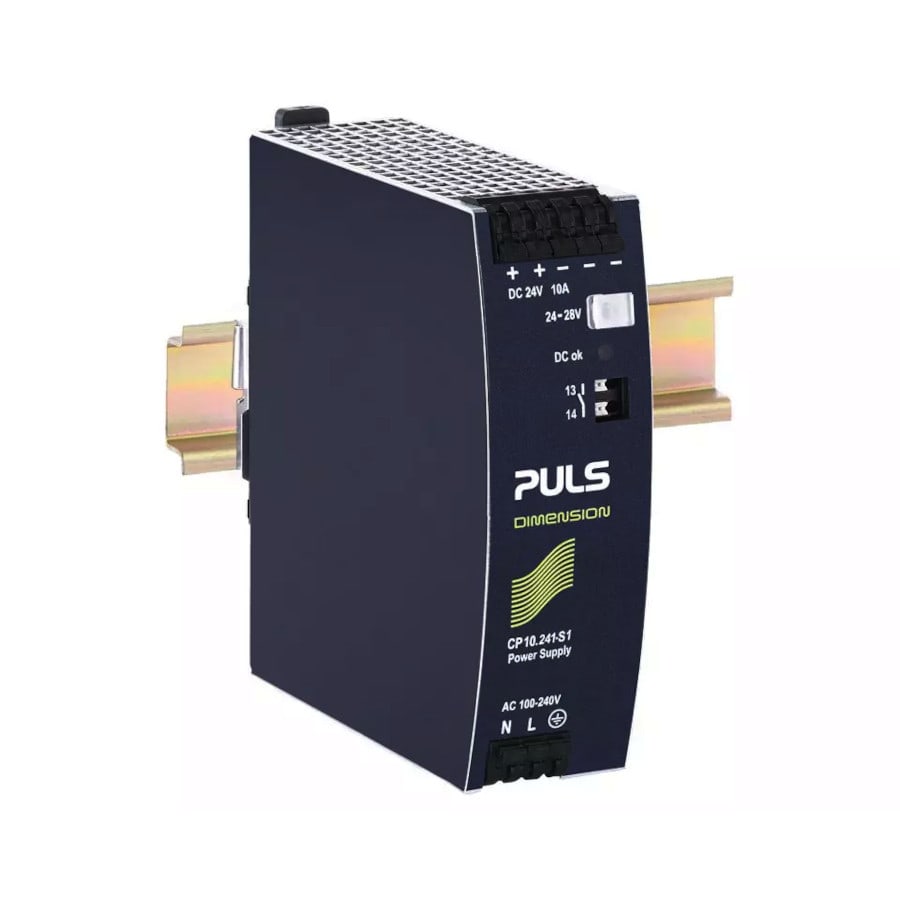

Puls - Puls DIMENSION CP-Series Power supply 24V DC 10A - CP10.241-S1

£190.62

/ each

£190.62

Delivery

Essential specifications

Voltage type of supply voltage - AC/DC
Max. output current 1 - 10 A
Secondary voltage adjustable - yes
Nominal value output voltage 1 - 24 V
Short-circuit-proof - yes

Packaging

1 each

GTIN

Supplier Ref

CP10.241-S1

Manufacturer Ref

CP10.241-S1

Commercial Reference

CP10.241-S1

Voltage type of supply voltage:

AC/DC

Max. output current 1:

10 A

Secondary voltage adjustable:

yes

Nominal value output voltage 1:

24 V

Short-circuit-proof:

yes

Rated supply voltage at AC 50 Hz:

100...240 V

Rated supply voltage at DC:

24...28 V

Power output:

240 W

Type of electric plug connection:

Spring clamp connection

Rail mounting possible:

yes

Suitable for wall mounting:

Suitable for DIN installation panels:

yes

Direct mounting possible:

Width:

39 mm

Height:

124 mm

Depth:

117 mm

IP-rating:

IP20

Puls DIMENSION CP-Series Power supply 24V DC 100-240V AC Input 10A DIN Rail Mounted. The DIMENSION CP-Series units are high-end power supplies in a medium price range without compromising quality, reliability and performance. The CP-Series is part of the DIMENSION power supply family. The most outstanding features of CP10 series are the high efficiency, advanced inrush current limitation, active PFC and the wide operational temperature range.
