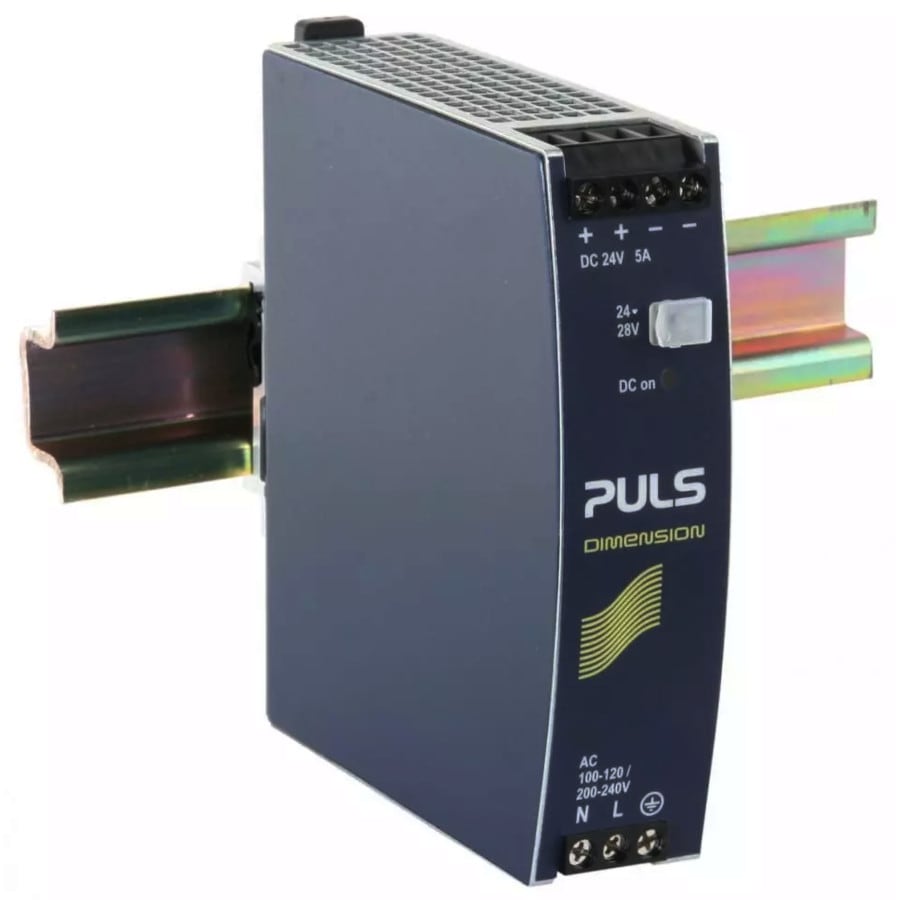

Puls - Puls DIMENSION CS-Series Auto-Select Power Supply 24-28V DC 5A - CS5.241-C1
/ each
£183.24
Delivery
Essential specifications
Voltage type of supply voltage - AC
Max. output current 1 - 5 A
Secondary voltage adjustable - yes
Nominal value output voltage 1 - 24 V
Short-circuit-proof - yes
Packaging
1 each
GTIN
Supplier Ref
CS5.241-C1
Manufacturer Ref
CS5.241-C1
Commercial Reference
CS5.241-C1
Voltage type of supply voltage:
AC
Max. output current 1:
5 A
Secondary voltage adjustable:
yes
Nominal value output voltage 1:
24 V
Short-circuit-proof:
yes
Rated supply voltage at AC 50 Hz:
100...240 V
Rated supply voltage at DC:
24...28 V
Output voltage stabilized:
yes
Power output:
120 W
Type of electric plug connection:
Screw connection
Rail mounting possible:
yes
Suitable for wall mounting:
no
Suitable for DIN installation panels:
yes
Direct mounting possible:
no
Width:
32 mm
Height:
124 mm
Depth:
117 mm
IP-rating:
IP20
Puls DIMENSION CS-Series Auto-Select Power Supply 24-28V DC 100-120/200-240V AC Input 5A DIN Rail Mounted. The DIMENSION C-Line units are cost optimized power supplies without compromising quality, reliability and performance. The C-Line is part of the DIMENSION power supply family, existing alongside the high featured Q-Line. The Auto-select input makes worldwide installation and usage very simple. Defects or system failures caused by wrongly set switches cannot occur.
- 115 / 230V Auto-select input
- Efficiency up to 90,2%
- Negligibly low input inrush current
- 20% Power reserves can be used continuously up to +45°C
- Full output power between -25 and +60°C
- Conformal coated
