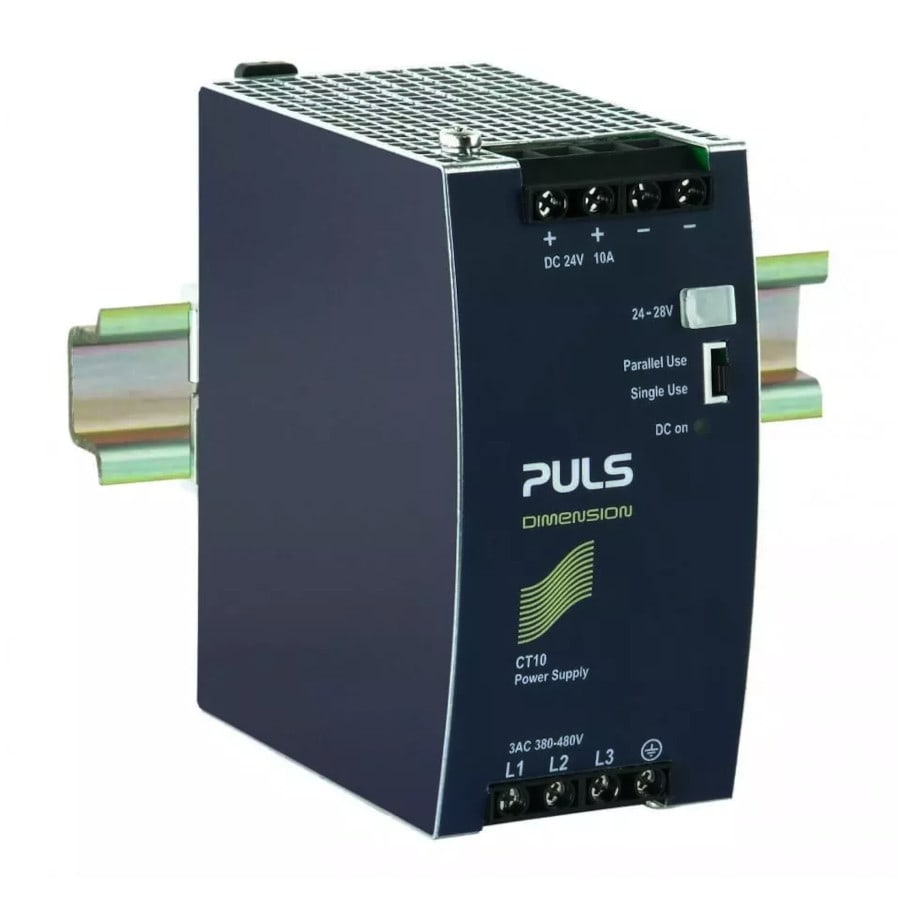

Puls - Puls DIMENSION CT-Series Power supply 24-28V DC 10A - CT10.241

£217.72

/ each

£217.72

Delivery

Essential specifications

Voltage type of supply voltage - AC/DC
1st secondary output voltage - 24...28 V
Max. output current 1 - 10 A
Secondary voltage adjustable - yes
Nominal value output voltage 1 - 24 V

Packaging

1 each

GTIN

Supplier Ref

CT10.241

Manufacturer Ref

CT10.241

Commercial Reference

CT10.241

Voltage type of supply voltage:

AC/DC

1st secondary output voltage:

24...28 V

Max. output current 1:

10 A

Secondary voltage adjustable:

yes

Nominal value output voltage 1:

24 V

Short-circuit-proof:

yes

Rated supply voltage at AC 50 Hz:

380...480 V

Rated supply voltage at DC:

24...28 V

Output voltage stabilized:

yes

Power output:

240 W

Type of electric plug connection:

Screw connection

Rail mounting possible:

yes

Suitable for wall mounting:

Suitable for DIN installation panels:

yes

Direct mounting possible:

Width:

62 mm

Height:

124 mm

Depth:

117 mm

IP-rating:

IP20

Puls DIMENSION CT-Series Power supply 24-28V DC 3x 380-480V AC Input 10A DIN Rail Mounted. The Dimension C-Series are cost optimized power supplies without compromising quality, reliability and performance. The CT-Series is part of the DIMENSION power supply family. The most outstanding features of the range are the high efficiency, electronic inrush current limitation, active input transient filter and wide operational temperature range. The small size is achieved by a synchronous rectification and further technological design details.
