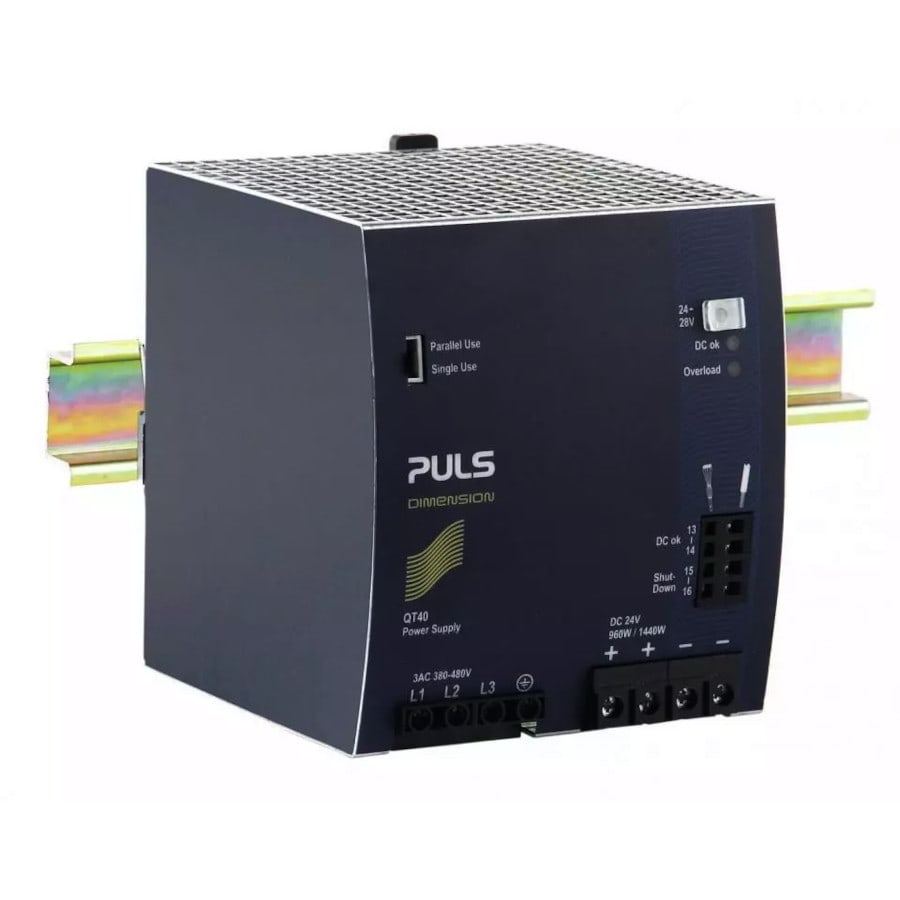

Puls - Puls DIMENSION Q-Series Power supply 24V DC 40A - QT40.241

£473.29

/ each

£473.29

Delivery

Essential specifications

Voltage type of supply voltage - AC/DC
Max. output current 1 - 40 A
Secondary voltage adjustable - yes
Nominal value output voltage 1 - 24 V
Short-circuit-proof - yes

Packaging

1 each

GTIN

Supplier Ref

QT40.241

Manufacturer Ref

QT40.241

Commercial Reference

QT40.241

Voltage type of supply voltage:

AC/DC

Max. output current 1:

40 A

Secondary voltage adjustable:

yes

Nominal value output voltage 1:

24 V

Short-circuit-proof:

yes

Rated supply voltage at AC 50 Hz:

380...480 V

Rated supply voltage at DC:

24...28 V

Output voltage stabilized:

yes

Power output:

960 W

Type of electric plug connection:

Spring clamp connection

Rail mounting possible:

yes

Suitable for wall mounting:

Suitable for DIN installation panels:

yes

Width:

110 mm

Height:

124 mm

Depth:

127 mm

IP-rating:

IP20

Puls DIMENSION Q-Series Power supply 24V DC 3x 380-480V AC Input 40A DIN Rail Mounted. The most outstanding features of this Dimension Q-Series DIN-rail power supply are the high efficiency and the small size. With short-term peak power capability of 150% and built-in large sized output capacitors, these features help start motors, charge capacitors and absorb reverse energy and often allow a unit of a lower wattage class to be used.
