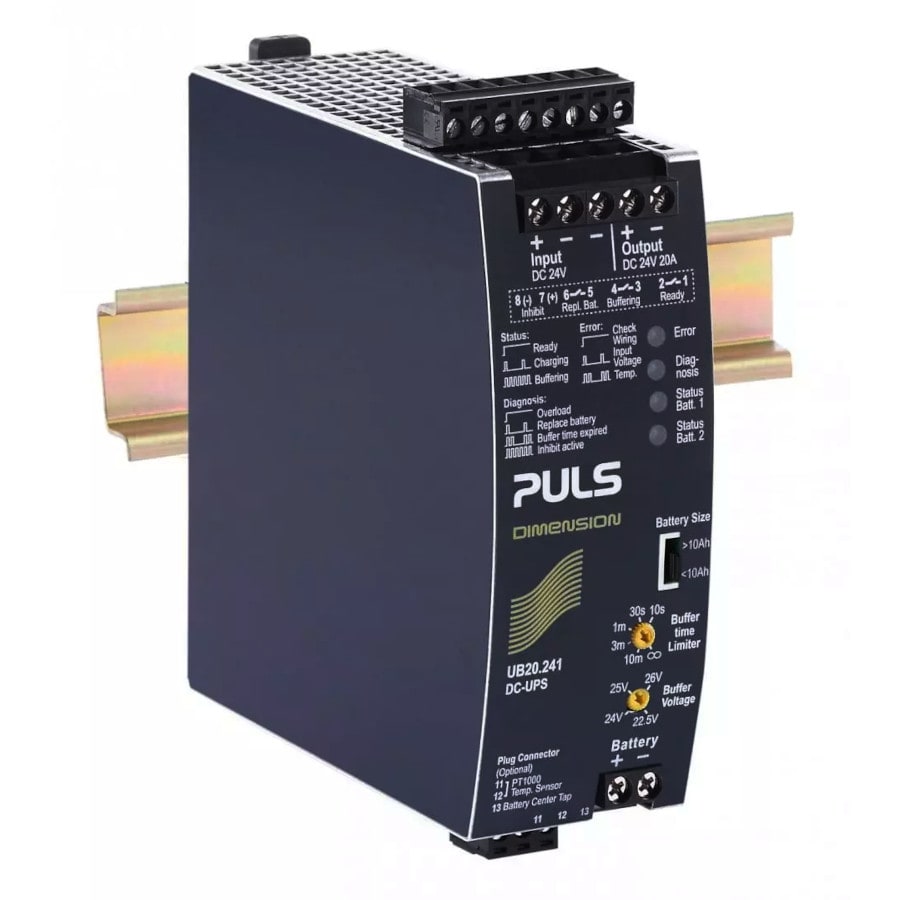

Puls - Puls DIMENSION U-Series DC-UPS Control Unit 24V DC 20A - UB20.241
/ each
£323.07
Delivery
Essential specifications
Primary voltage - 24...24 V
Output effective power - 480 W
Voltage type - DC
Height - 124 mm
Width - 49 mm
Packaging
1 each
GTIN
Supplier Ref
UB20.241
Manufacturer Ref
UB20.241
Commercial Reference
UB20.241
Primary voltage:
24...24 V
Output effective power:
480 W
Voltage type:
DC
Height:
124 mm
Width:
49 mm
Depth:
117 mm
Weight:
0.53 kg
Puls DIMENSION U-Series DC-UPS Control Unit 24V DC 12V Battery Input 20A DIN Rail Mounted. This uninterruptible power supply (UPS) controller is an addition to standard 24V power supplies to bridge power failures or voltage fluctuations. Expensive downtimes, long restart cycles and loss of data can be avoided. The DC-UPS includes a professional battery management system which charges and monitors the battery to achieve the longest battery service life as well as many diagnostic functions that ensure a reliable operation of the entire system.
- Includes the PULS 1-Battery-Concept
- 22.5-26V adjustable output voltage in buffer mode
- Superior battery management for longest battery life
- 25A Output current in normal mode 50% power reserves in buffer mode
- For battery sizes between 3,9 and 150Ah
- Large screw terminals
