Puls - Puls DIMENSION Y-Series Redundancy Power Supply DC - YR20.242
/ each
£69.66
Delivery
Essential specifications
Voltage type of supply voltage - DC
Max. output current 1 - 40 A
Secondary voltage adjustable - yes
Nominal value output voltage 1 - 24 V
Short-circuit-proof - yes
Packaging
1 each
GTIN
Supplier Ref
YR20.242
Manufacturer Ref
YR20.242
Commercial Reference
YR20.242
Voltage type of supply voltage:
DC
Max. output current 1:
40 A
Secondary voltage adjustable:
yes
Nominal value output voltage 1:
24 V
Short-circuit-proof:
yes
Rated supply voltage at DC:
12...28 V
Type of electric plug connection:
Screw connection
Rail mounting possible:
yes
Suitable for wall mounting:
no
Suitable for DIN installation panels:
yes
Direct mounting possible:
no
Width:
32 mm
Height:
124 mm
Depth:
117 mm
IP-rating:
IP20

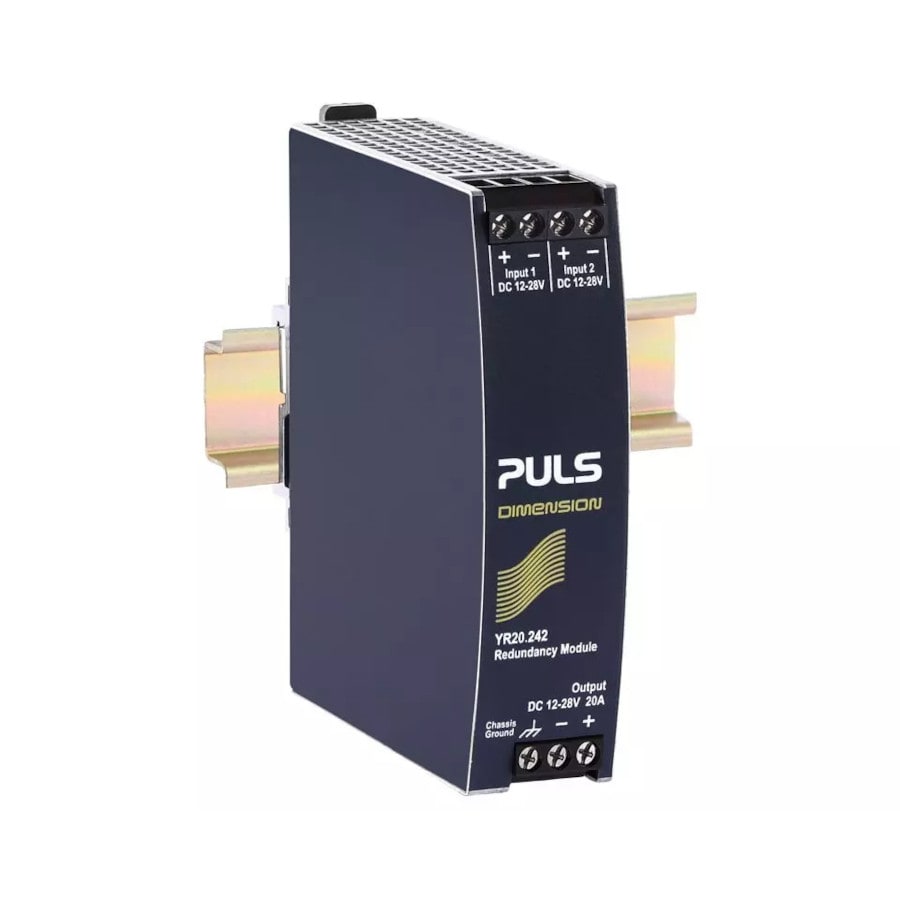

Puls DIMENSION Y-Series Redundancy Power Supply DC DIN Rail Mounted. The YR20.242 is a redundancy module for building redundant power supply systems. It is equipped with two input channels and one output. The two inputs are decoupled by MOSFET technology.
- For N+1 and 1+1 Redundant Systems
- Dual Input with Single Output
- Only 60mV Voltage Drop at 10A Output Current
- Only 0.6W Loss at 10A
- 160% (32.5A) Peak Load Capability
- Reverse Input Polarity Protection
- Full Power Between -40°C and +70°C
- Width only 32mm
- Rugged Metal Housing
- Easy Wiring: Distribution Terminal for Negative Pole Included
