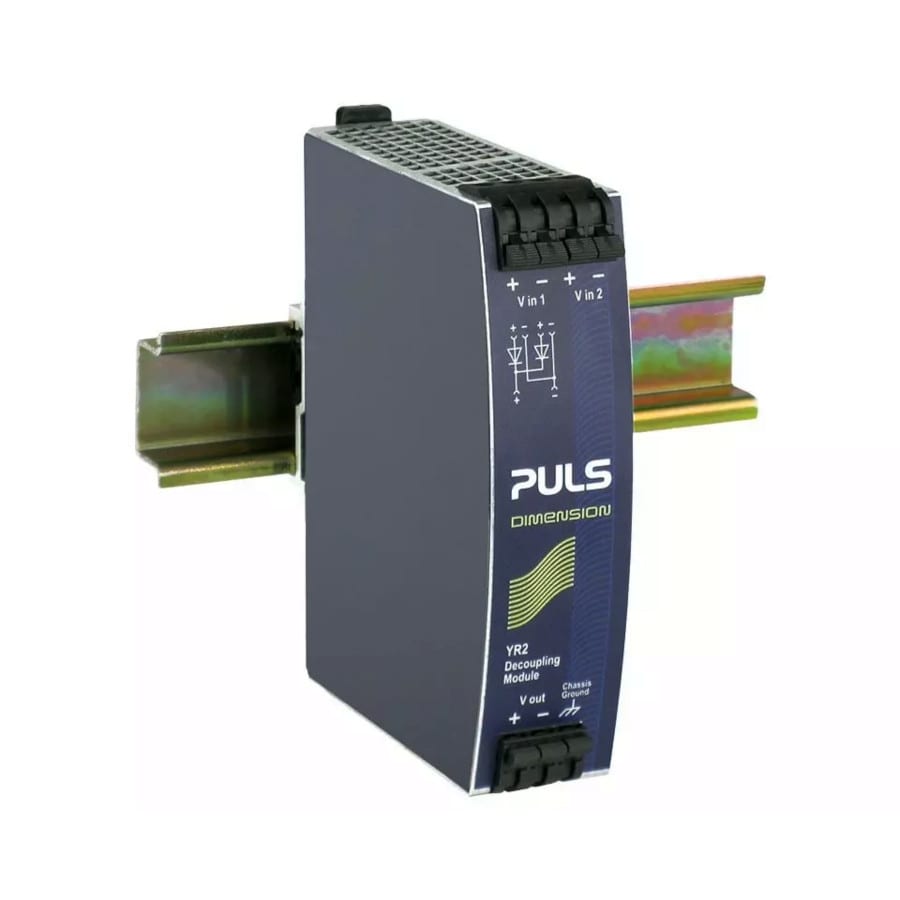

Puls - Puls DIMENSION Y-Series Redundancy Power Supply DC - YR2.DIODE
/ each
£59.78
Delivery
Essential specifications
Voltage type of supply voltage - DC
Max. output current 1 - 20 A
Secondary voltage adjustable - yes
Nominal value output voltage 1 - 24 V
Short-circuit-proof - yes
Packaging
1 each
GTIN
Supplier Ref
YR2.DIODE
Manufacturer Ref
YR2.DIODE
Commercial Reference
YR2.DIODE
Voltage type of supply voltage:
DC
Max. output current 1:
20 A
Secondary voltage adjustable:
yes
Nominal value output voltage 1:
24 V
Short-circuit-proof:
yes
Rated supply voltage at DC:
12...48 V
Type of electric plug connection:
Spring clamp connection
Rail mounting possible:
yes
Suitable for wall mounting:
no
Suitable for DIN installation panels:
yes
Direct mounting possible:
no
Width:
32 mm
Height:
124 mm
Depth:
102 mm
IP-rating:
IP20
Puls DIMENSION Y-Series Redundancy Power Supply DC DIN Rail Mounted. The YR2.DIODE is a redundancy module, which can be used to build 1+1 and N+1 redundant systems. It is equipped with two input channels, which can be connected to power supplies with up to 10A output current and one output, which can carry nominal currents up to 20A.
- Redundancy module for building redundant systems
- Two 10A inputs, one 20A output
- Only 0.85V voltage drop between input and output under full load
- Full output current between -40 and +60°C
- Quick-connect spring-clamp terminals
- Reverse polarity protected input
