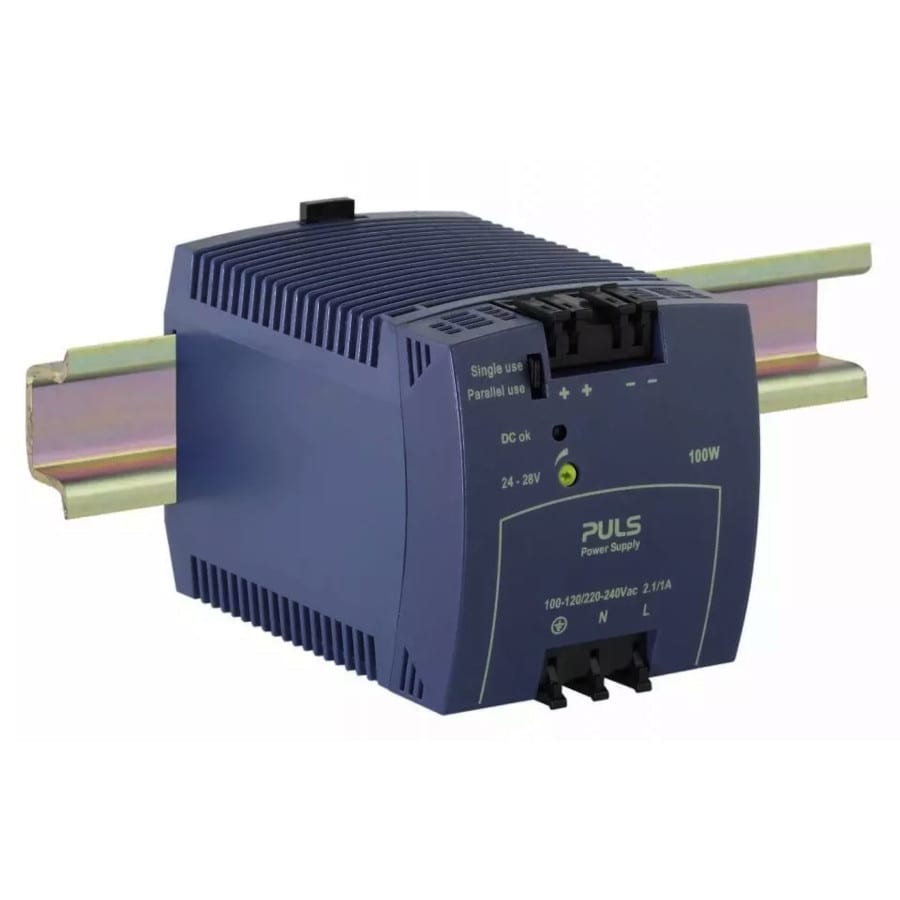

Puls - Puls MiniLine Auto-Select Power Supply 24-28V DC 4.2A - ML100.100
/ each
£131.68
Delivery
Essential specifications
Voltage type of supply voltage - AC/DC
1st secondary output voltage - 24...28 V
Max. output current 1 - 3.6 A
Secondary voltage adjustable - yes
Nominal value output voltage 1 - 24 V
Packaging
1 each
GTIN
Supplier Ref
ML100.100
Manufacturer Ref
ML100.100
Commercial Reference
ML100.100
Voltage type of supply voltage:
AC/DC
1st secondary output voltage:
24...28 V
Max. output current 1:
3.6 A
Secondary voltage adjustable:
yes
Nominal value output voltage 1:
24 V
Short-circuit-proof:
yes
Rated supply voltage at AC 50 Hz:
115...230 V
Rated supply voltage at DC:
24...28 V
Power output:
100 W
Type of electric plug connection:
Spring clamp connection
Rail mounting possible:
yes
Suitable for wall mounting:
no
Suitable for DIN installation panels:
yes
Direct mounting possible:
no
Width:
73 mm
Height:
75 mm
Depth:
103 mm
IP-rating:
IP20
Puls MiniLine Auto-Select Power Supply 24-28V DC 100-120/200-240V AC Input 4.2A DIN Rail Mounted. The MiniLine family covers DIN rail power supplies for low and medium power range from 15W to 100W. The units, in their rugged plastic housing are highly efficient, compact, reliable and can be installed in seconds.
- Mounted and connected in record time, no tools required
- World-wide approvals (UL, EN, CSA,CB Scheme) for industry and office/home
- Tiny: WxHxD = 73 x 75 x 103mm
- Hazardous Location Class I Div. 2 (UL 1604)
- Adjustable output voltage up to DC 28V
- 115/230V Auto Select Input
- PULS Overload Design™ (high output overload capability)
- Selectable single/parallel operation (jumper)
